PX0931/10/P

Active

BULGIN LIMITED

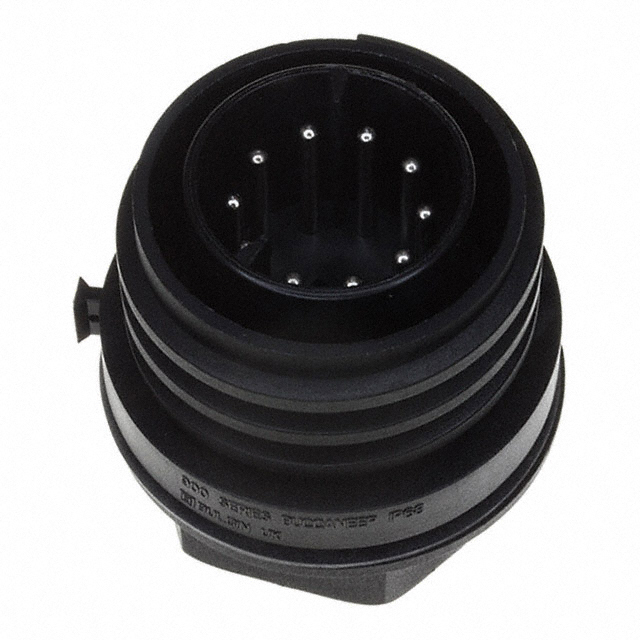

CONN RCPT MALE 10P NICKEL SCREW

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN RCPT MALE 10P NICKEL SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	PX0931/10/P

Cable Opening [Max] [diameter]	13 mm
Cable Opening [Max] [diameter]	0.512 in
Cable Opening [Min] [diameter]	0.276 in
Cable Opening [Min] [diameter]	7 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Features	UV Resistant
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

Part	Mounting Feature	Connector Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Termination	Color	Contact Finish - Mating	Number of Positions	Orientation	Shielding	Voltage Rating	Primary Material	Features	Current Rating (Amps)	Contact Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PX0931/10/P	Bulkhead	Male Pins Receptacle	IP68 IP69K	85 °C	-40 °C	UL94 V-0	0.276 in	7 mm	13 mm	0.512 in	Screw	Black	Nickel	10	Keyed	Unshielded	250 VAC	Plastic	UV Resistant	10 A	Brass
BULGIN LIMITED PX0931/03/P	Bulkhead	Male Pins Receptacle	IP68 IP69K	85 °C	-40 °C	UL94 V-0	0.276 in	7 mm	13 mm	0.512 in	Screw	Black	Nickel		Keyed	Unshielded	600 VAC	Plastic	UV Resistant	32 A	Brass	3	1	2
BULGIN LIMITED PX0931/07/S	Bulkhead	Receptacle Female Sockets	IP68 IP69K	85 °C	-40 °C	UL94 V-0	0.276 in	7 mm	13 mm	0.512 in	Screw	Black	Nickel	7	Keyed	Unshielded	430 VAC/DC	Plastic	UV Resistant	32 A	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.22
Newark	Each	1	$ 91.74

General part information

10 (Power) Position Circular Connector Receptacle, Male Pins Screw
