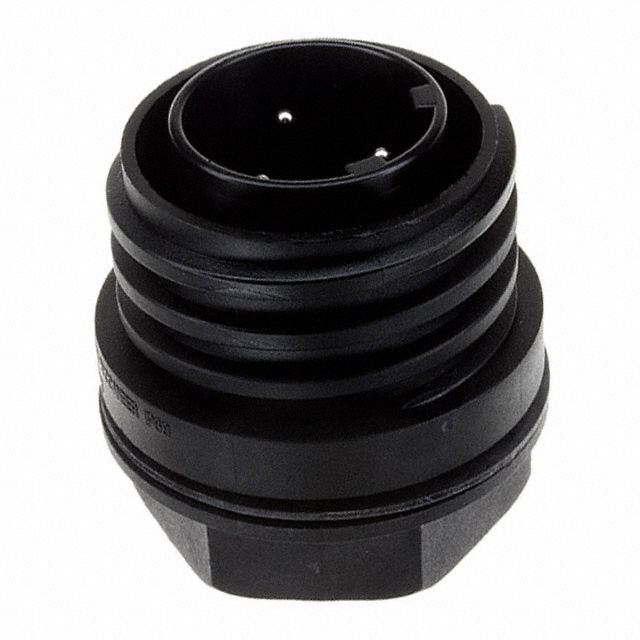

PX0931/03/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, PANEL MOUNT PLUG, 3 CONTACTS, SCREW PIN

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, PANEL MOUNT PLUG, 3 CONTACTS, SCREW PIN

Technical Specifications

Parameters and characteristics for this part

Specification	PX0931/03/P

Cable Opening [Max] [diameter]	13 mm
Cable Opening [Max] [diameter]	0.512 in
Cable Opening [Min] [diameter]	0.276 in
Cable Opening [Min] [diameter]	7 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	32 A
Features	UV Resistant
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

Part	Mounting Feature	Connector Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Termination	Color	Contact Finish - Mating	Number of Positions	Orientation	Shielding	Voltage Rating	Primary Material	Features	Current Rating (Amps)	Contact Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PX0931/10/P	Bulkhead	Male Pins Receptacle	IP68 IP69K	85 °C	-40 °C	UL94 V-0	0.276 in	7 mm	13 mm	0.512 in	Screw	Black	Nickel	10	Keyed	Unshielded	250 VAC	Plastic	UV Resistant	10 A	Brass
BULGIN LIMITED PX0931/03/P	Bulkhead	Male Pins Receptacle	IP68 IP69K	85 °C	-40 °C	UL94 V-0	0.276 in	7 mm	13 mm	0.512 in	Screw	Black	Nickel		Keyed	Unshielded	600 VAC	Plastic	UV Resistant	32 A	Brass	3	1	2
BULGIN LIMITED PX0931/07/S	Bulkhead	Receptacle Female Sockets	IP68 IP69K	85 °C	-40 °C	UL94 V-0	0.276 in	7 mm	13 mm	0.512 in	Screw	Black	Nickel	7	Keyed	Unshielded	430 VAC/DC	Plastic	UV Resistant	32 A	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (2 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
