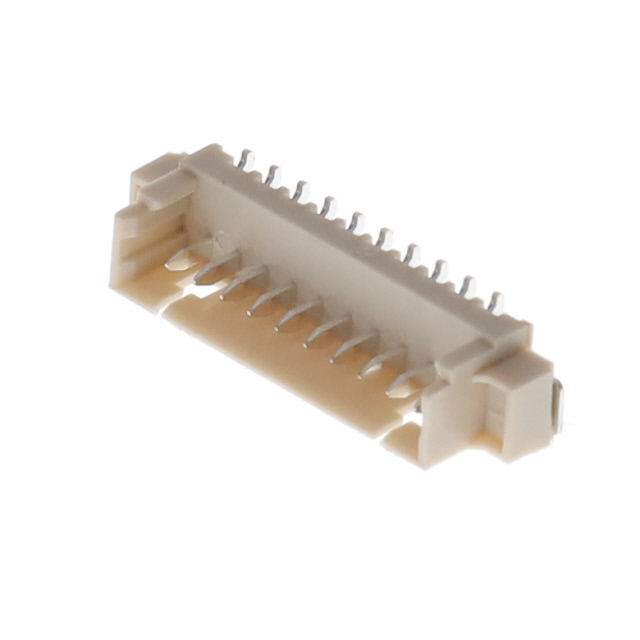

125SH-B-10-TS-SMT-T/R
ActiveAdam Tech
CONN HEADER SMD 10POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
125SH-B-10-TS-SMT-T/R
ActiveAdam Tech
CONN HEADER SMD 10POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 125SH-B-10-TS-SMT-T/R |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 2.1 mm |
| Contact Length - Mating [x] | 0.083 " |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Friction Lock |
| Features | Solder Retention |
| Insulation Color | Ivory |
| Insulation Height | 4.65 mm |
| Insulation Height | 0.183 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
125SH-B Series
| Part | Number of Positions Loaded | Insulation Color | Mounting Type | Contact Shape | Shrouding | Voltage Rating | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Overall Contact Length | Overall Contact Length | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Style | Termination | Fastening Type | Number of Positions | Number of Rows | Contact Type | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Length - Post | Contact Length - Post | Connector Type | Material Flammability Rating | Features | Contact Length - Mating [x] | Contact Length - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | All | Natural | Through Hole | Rectangular | Shrouded - 4 Wall | 125 VAC | 0.165 in | 4.2 mm | 1.25 mm | 0.049 in | Tin | 0.232 in | 5.9 mm | 2.4 mm | 0.094 in | Board to Cable/Wire | Solder | Friction Lock | 2 | 1 | Male Blade | Polyamide (PA66) Nylon 6/6 | 85 °C | -40 °C | Brass | 0.091 in | 2.3 mm | Header | UL94 V-0 | |||||
Adam Tech | All | Natural | Through Hole | Rectangular | Shrouded - 4 Wall | 125 VAC | 0.165 in | 4.2 mm | 1.25 mm | 0.049 in | Tin | 0.232 in | 5.9 mm | 2.4 mm | 0.094 in | Board to Cable/Wire | Solder | Friction Lock | 6 | 1 | Male Blade | Polyamide (PA66) Nylon 6/6 | 85 °C | -40 °C | Brass | 0.091 in | 2.3 mm | Header | UL94 V-0 | |||||
Adam Tech | All | Ivory | Surface Mount | Rectangular | Shrouded - 4 Wall | 250 VAC | 1.25 mm | 0.049 in | Tin | Board to Cable/Wire | Solder | Friction Lock | 1 | Male Blade | 85 °C | -40 °C | Brass | Header | UL94 V-0 | Solder Retention | 0.083 " | 2.1 mm | 4.65 mm | 0.183 in | ||||||||||
Adam Tech | All | Natural | Through Hole | Rectangular | Shrouded - 4 Wall | 125 VAC | 0.165 in | 4.2 mm | 1.25 mm | 0.049 in | Tin | 0.232 in | 5.9 mm | 2.4 mm | 0.094 in | Board to Cable/Wire | Solder | Friction Lock | 8 | 1 | Male Blade | Polyamide (PA66) Nylon 6/6 | 85 °C | -40 °C | Brass | 0.091 in | 2.3 mm | Header | UL94 V-0 | |||||
Adam Tech | All | Ivory | Surface Mount | Rectangular | Shrouded - 4 Wall | 250 VAC | 1.25 mm | 0.049 in | Tin | Board to Cable/Wire | Solder | Friction Lock | 4 | 1 | Male Blade | 85 °C | -40 °C | Brass | Header | UL94 V-0 | Solder Retention | 0.083 " | 2.1 mm | 4.65 mm | 0.183 in | |||||||||
Adam Tech | All | Ivory | Surface Mount | Rectangular | Shrouded - 4 Wall | 250 VAC | 1.25 mm | 0.049 in | Tin | Board to Cable/Wire | Solder | Friction Lock | 2 | 1 | Male Blade | 85 °C | -40 °C | Brass | Header | UL94 V-0 | Solder Retention | 0.083 " | 2.1 mm | 4.65 mm | 0.183 in | |||||||||
Adam Tech | All | Ivory | Surface Mount | Rectangular | Shrouded - 4 Wall | 250 VAC | 1.25 mm | 0.049 in | Tin | Board to Cable/Wire | Solder | Friction Lock | 10 | 1 | Male Blade | 85 °C | -40 °C | Brass | Header | UL94 V-0 | Solder Retention | 0.083 " | 2.1 mm | 4.65 mm | 0.183 in | |||||||||
Adam Tech | All | Natural | Through Hole | Rectangular | Shrouded - 4 Wall | 125 VAC | 0.165 in | 4.2 mm | 1.25 mm | 0.049 in | Tin | 0.232 in | 5.9 mm | 2.4 mm | 0.094 in | Board to Cable/Wire | Solder | Friction Lock | 1 | Male Blade | Polyamide (PA66) Nylon 6/6 | 85 °C | -40 °C | Brass | 0.091 in | 2.3 mm | Header | UL94 V-0 | ||||||
Adam Tech | All | Ivory | Surface Mount | Rectangular | Shrouded - 4 Wall | 250 VAC | 1.25 mm | 0.049 in | Tin | Board to Cable/Wire | Solder | Friction Lock | 1 | Male Blade | 85 °C | -40 °C | Brass | Header | UL94 V-0 | Solder Retention | 0.083 " | 2.1 mm | 4.65 mm | 0.183 in | ||||||||||
Adam Tech | All | Natural | Surface Mount Right Angle | Rectangular | Shrouded - 4 Wall | 100 VAC | 1.25 mm | 0.049 in | Tin | Board to Cable/Wire | Solder | Friction Lock | 1 | Male Blade | 85 °C | -40 °C | Brass | Header | UL94 V-0 | Solder Retention | 3.4 mm | 0.134 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| 10 | $ 0.95 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 1.25 | ||
| 10 | $ 0.95 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.61 | |||
| Tape & Reel (TR) | 3000 | $ 0.44 | ||
Description
General part information
125SH-B Series
Connector Header Surface Mount 10 position 0.049" (1.25mm)
