125SH-B-08-TS

Active

Adam Tech

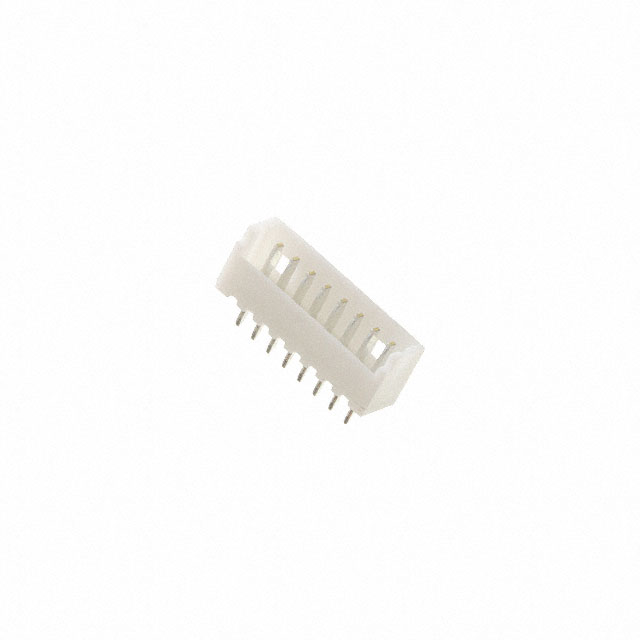

CONN HEADER VERT 8POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

125SH-B-08-TS

Active

Adam Tech

CONN HEADER VERT 8POS 1.25MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	125SH-B-08-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.232 in
Overall Contact Length	5.9 mm
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VAC

125SH-B Series

Part	Number of Positions Loaded	Insulation Color	Mounting Type	Contact Shape	Shrouding	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Style	Termination	Fastening Type	Number of Positions	Number of Rows	Contact Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Length - Post	Contact Length - Post	Connector Type	Material Flammability Rating	Features	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height
Adam Tech 125SH-B-02-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock	2	1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-06-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock	6	1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-03-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock		1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-08-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock	8	1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-04-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock	4	1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-02-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock	2	1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-10-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock	10	1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-03-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock		1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-05-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock		1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-05-TR-SMT-T/R	All	Natural	Surface Mount Right Angle	Rectangular	Shrouded - 4 Wall	100 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock		1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention			3.4 mm	0.134 in
