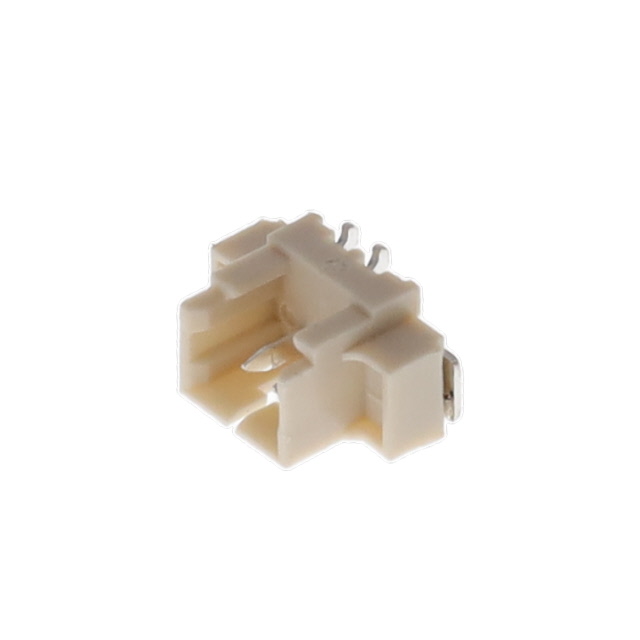

125SH-B-02-TS-SMT-T/R

Active

Adam Tech

CONN HEADER SMD 2POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

125SH-B-02-TS-SMT-T/R

Active

Adam Tech

CONN HEADER SMD 2POS 1.25MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	125SH-B-02-TS-SMT-T/R

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	2.1 mm
Contact Length - Mating [x]	0.083 "
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Ivory
Insulation Height	4.65 mm
Insulation Height	0.183 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

125SH-B Series

Part	Number of Positions Loaded	Insulation Color	Mounting Type	Contact Shape	Shrouding	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Style	Termination	Fastening Type	Number of Positions	Number of Rows	Contact Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Length - Post	Contact Length - Post	Connector Type	Material Flammability Rating	Features	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height
Adam Tech 125SH-B-02-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock	2	1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-06-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock	6	1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-03-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock		1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-08-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock	8	1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-04-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock	4	1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-02-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock	2	1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-10-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock	10	1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-03-TS	All	Natural	Through Hole	Rectangular	Shrouded - 4 Wall	125 VAC	0.165 in	4.2 mm	1.25 mm	0.049 in	Tin	0.232 in	5.9 mm	2.4 mm	0.094 in	Board to Cable/Wire	Solder	Friction Lock		1	Male Blade	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Brass	0.091 in	2.3 mm	Header	UL94 V-0
Adam Tech 125SH-B-05-TS-SMT-T/R	All	Ivory	Surface Mount	Rectangular	Shrouded - 4 Wall	250 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock		1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention	0.083 "	2.1 mm	4.65 mm	0.183 in
Adam Tech 125SH-B-05-TR-SMT-T/R	All	Natural	Surface Mount Right Angle	Rectangular	Shrouded - 4 Wall	100 VAC			1.25 mm	0.049 in	Tin					Board to Cable/Wire	Solder	Friction Lock		1	Male Blade		85 °C	-40 °C	Brass			Header	UL94 V-0	Solder Retention			3.4 mm	0.134 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.48
	Digi-Reel®	1	$ 0.48
	Tape & Reel (TR)	3000	$ 0.19
