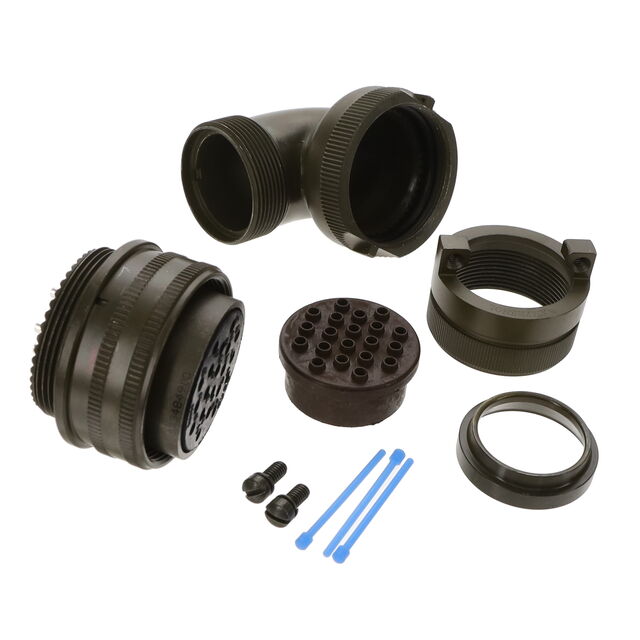

MS3108E28-16S

Active

Amphenol Industrial Operations

RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

MS3108E28-16S

Active

Amphenol Industrial Operations

RECEPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E28-16S

null

MS3108E28 Series

Part	Applications	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Color	Mounting Type	Shell Material	Primary Material	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Qualification	Contact Material	Features	Orientation	Grade	Shell Finish	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Contact Finish - Mating	Shell Size - Insert
Amphenol Industrial Operations MS3108E28-20S	Marine Military	14	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A 23 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Female Sockets Plug	28	20	Environment Resistant	Silver
Amphenol Industrial Operations MS3108E28-20P	Marine Military	14	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A 23 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Male Pins Plug	28	20	Environment Resistant	Silver
Amphenol Industrial Operations MS3108E28-12S	Marine Military	26	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Female Sockets Plug			Environment Resistant	Silver	28-12
Amphenol Industrial Operations MS3108E28-18SX
Amphenol Industrial Operations MS3108E28-16S
Amphenol Industrial Operations MS3108E28-19PY
Amphenol Industrial Operations MS3108E28-12P	Marine Military	26	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Male Pins Plug			Environment Resistant	Silver	28-12
Amphenol Industrial Operations MS3108E28-10P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 140.11
		10	$ 109.30

Description

General part information

MS3108E28 Series

Position Circular Connector

Documents

Technical documentation and resources

No documents available
