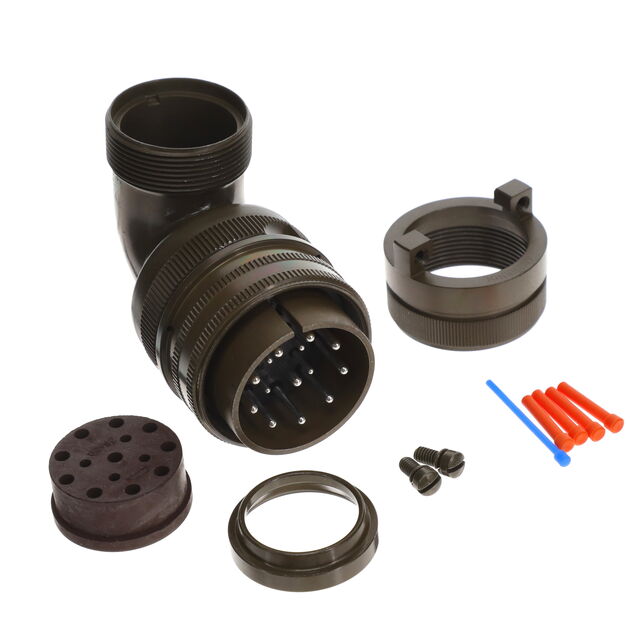

MS3108E28-20P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3108E28-20P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E28-20P

Applications	Military, Marine
Cable Opening [custom]	23.42 mm
Cable Opening [custom]	0.922 in
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 23 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	20
Shell Size - Insert [Min]	28
Shielding	Unshielded

MS3108E28 Series

Part	Applications	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Color	Mounting Type	Shell Material	Primary Material	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Qualification	Contact Material	Features	Orientation	Grade	Shell Finish	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Contact Finish - Mating	Shell Size - Insert
Amphenol Industrial Operations MS3108E28-20S	Marine Military	14	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A 23 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Female Sockets Plug	28	20	Environment Resistant	Silver
Amphenol Industrial Operations MS3108E28-20P	Marine Military	14	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A 23 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Male Pins Plug	28	20	Environment Resistant	Silver
Amphenol Industrial Operations MS3108E28-12S	Marine Military	26	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Female Sockets Plug			Environment Resistant	Silver	28-12
Amphenol Industrial Operations MS3108E28-18SX
Amphenol Industrial Operations MS3108E28-16S
Amphenol Industrial Operations MS3108E28-19PY
Amphenol Industrial Operations MS3108E28-12P	Marine Military	26	-55 °C	125 °C	Unshielded	Olive Drab	Free Hanging (In-Line) Right Angle	Aluminum Alloy	Metal	13 A	23.42 mm	0.922 in	Neoprene	MIL-DTL-5015	Copper Alloy	Cable Clamp Coupling Nut	N	Military	Olive Drab Chromate over Cadmium	Male Pins Plug			Environment Resistant	Silver	28-12
Amphenol Industrial Operations MS3108E28-10P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.61
		10	$ 70.30
		25	$ 67.60
		50	$ 65.35
		100	$ 61.74

Description

General part information

MS3108E28 Series

14 Position Circular Connector Plug, Male Pins Solder Cup
