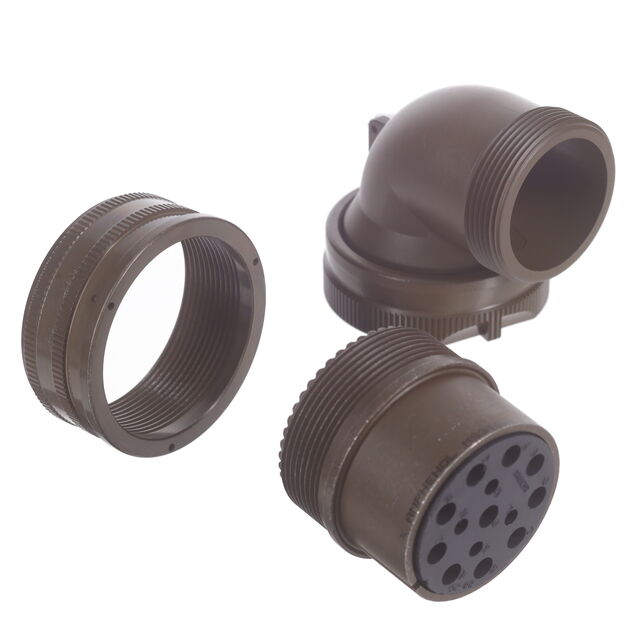

MS3108E28-20S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E28-20S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108E28-20S |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 23.42 mm |
| Cable Opening [custom] | 0.922 in |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A, 23 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 20 |
| Shell Size - Insert [Min] | 28 |
| Shielding | Unshielded |
MS3108E28 Series
| Part | Applications | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Color | Mounting Type | Shell Material | Primary Material | Current Rating (Amps) | Cable Opening [custom] | Cable Opening [custom] | Insert Material | Qualification | Contact Material | Features | Orientation | Grade | Shell Finish | Connector Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Ingress Protection | Contact Finish - Mating | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Marine Military | 14 | -55 °C | 125 °C | Unshielded | Olive Drab | Free Hanging (In-Line) Right Angle | Aluminum Alloy | Metal | 13 A 23 A | 23.42 mm | 0.922 in | Neoprene | MIL-DTL-5015 | Copper Alloy | Cable Clamp Coupling Nut | N | Military | Olive Drab Chromate over Cadmium | Female Sockets Plug | 28 | 20 | Environment Resistant | Silver | |
Amphenol Industrial Operations | Marine Military | 14 | -55 °C | 125 °C | Unshielded | Olive Drab | Free Hanging (In-Line) Right Angle | Aluminum Alloy | Metal | 13 A 23 A | 23.42 mm | 0.922 in | Neoprene | MIL-DTL-5015 | Copper Alloy | Cable Clamp Coupling Nut | N | Military | Olive Drab Chromate over Cadmium | Male Pins Plug | 28 | 20 | Environment Resistant | Silver | |
Amphenol Industrial Operations | Marine Military | 26 | -55 °C | 125 °C | Unshielded | Olive Drab | Free Hanging (In-Line) Right Angle | Aluminum Alloy | Metal | 13 A | 23.42 mm | 0.922 in | Neoprene | MIL-DTL-5015 | Copper Alloy | Cable Clamp Coupling Nut | N | Military | Olive Drab Chromate over Cadmium | Female Sockets Plug | Environment Resistant | Silver | 28-12 | ||
Amphenol Industrial Operations | |||||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||
Amphenol Industrial Operations | Marine Military | 26 | -55 °C | 125 °C | Unshielded | Olive Drab | Free Hanging (In-Line) Right Angle | Aluminum Alloy | Metal | 13 A | 23.42 mm | 0.922 in | Neoprene | MIL-DTL-5015 | Copper Alloy | Cable Clamp Coupling Nut | N | Military | Olive Drab Chromate over Cadmium | Male Pins Plug | Environment Resistant | Silver | 28-12 | ||
Amphenol Industrial Operations |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 82.30 | |
| 10 | $ 75.52 | |||
| 25 | $ 72.61 | |||
| 50 | $ 70.19 | |||
| 100 | $ 66.32 | |||
Description
General part information
MS3108E28 Series
14 Position Circular Connector Plug, Female Sockets Solder Cup
