OA109AP-11-1TS
ActiveOrion Fans

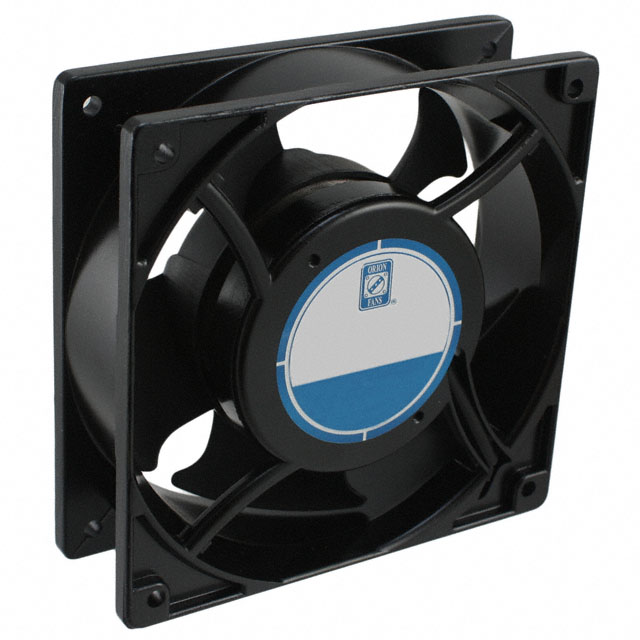

AC FAN AXIAL SLEEVE BEARING 115V 100V TO 125V 89CFM/104CFM 42DB 119.5 X 119.5 X 38.5MM HIGH SPEED
Deep-Dive with AI
Search across all available documentation for this part.
OA109AP-11-1TS
ActiveOrion Fans
AC FAN AXIAL SLEEVE BEARING 115V 100V TO 125V 89CFM/104CFM 42DB 119.5 X 119.5 X 38.5MM HIGH SPEED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA109AP-11-1TS |
|---|---|
| Air Flow | 110 CFM |
| Air Flow | 3.08 mł/min |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Sleeve |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 42 dB |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 15 W |
| RPM | 3000 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 69.7 Pa |
| Static Pressure | 0.28 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Width [y] | 38.5 mm |
OA109AP Series
| Part | Voltage Range [Max] | Voltage Range [Min] | Noise | Width [y] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Material - Blade | Termination | Static Pressure | Static Pressure | Power (Watts) | RPM | Bearing Type | Voltage - Rated | Air Flow | Air Flow | Size / Dimension [y] | Size / Dimension [x] | Material - Frame | Lifetime @ Temp. | Fan Type | Approval Agency | Features | Weight | Weight | Operating Temperature [Max] | Size / Dimension [z] | Ingress Protection | Voltage - Rated [Max] | Voltage - Rated [Min] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Orion Fans | 260 VAC | 160 VAC | 35 dB | 38.5 mm | -20 C | -20 °C | 75 ░C | 75 °C | Polybutylene Terephthalate (PBT) | 2 Terminals | 0.21 in H2O | 52.3 Pa | 11 W | 2300 RPM | Ball | 230 VAC | 71 CFM | 1.99 mł/min | 120 mm | 120 mm | Aluminum | 70000 Hrs | Tubeaxial | CE cURus TUV UR | |||||||||
Orion Fans | 260 VAC | 160 VAC | 42 dB | 38.5 mm | -20 C | -20 °C | 75 ░C | 75 °C | Polybutylene Terephthalate (PBT) | 2 Wire Leads | 0.28 in H2O | 69.7 Pa | 15 W | 3000 RPM | Ball | 230 VAC | 110 CFM | 3.08 mł/min | 120 mm | 120 mm | Aluminum | 70000 Hrs | Tubeaxial | CE cURus TUV UR | |||||||||
Orion Fans | 46 dB(A) | 38.5 mm | -20 C | -20 °C | 70 °C | 70 °C | Polybutylene Terephthalate (PBT) | 2 Terminals | 0.32 in H2O | 79.7 Pa | 12 W | 3100 RPM | Ball | 115 VAC | 106 CFM | 2.97 mł/min | 120 mm | 120 mm | Aluminum | 40000 Hrs | Tubeaxial | Salt Fog Rated | 499 g | 1.1 lbs | |||||||||
Orion Fans | 42 dB | 38.5 mm | -10 °C | -10 °C | 45 °C | Polybutylene Terephthalate (PBT) | 2 Terminals | 0.28 in H2O | 69.7 Pa | 15 W | 3000 RPM | Sleeve | 115 VAC | 110 CFM | 3.08 mł/min | 120 mm | 120 mm | Aluminum | 30000 Hrs | Tubeaxial | CE cURus TUV UR | 45 °C | |||||||||||
Orion Fans | 42 dB | 38.5 mm | -20 C | -20 °C | 75 ░C | 75 °C | Polybutylene Terephthalate (PBT) | 2 Wire Leads | 0.28 in H2O | 69.7 Pa | 15 W | 3000 RPM | Ball | 115 VAC | 110 CFM | 3.08 mł/min | 120 mm | 120 mm | Aluminum | 70000 Hrs | Tubeaxial | CE cURus TUV UR | |||||||||||
Orion Fans | 43 dB | 38.5 mm | Metal | 2 Terminals | 0.12 in H2O | 30 Pa | 13 W | 2500 RPM | Ball | 230 VAC | 85 CFM | 2.38 m³/min | 119.5 mm | Aluminum | 50000 Hrs | Tubeaxial | cURus TUV | 589.7 g | 1.3 lbs | 119.5 mm | IP55 - Dust Protected Water Resistant | ||||||||||||
Orion Fans | 240 VAC | 100 VAC | 25 dB(A) | 38 mm | -20 C | -20 °C | 80 C | 4 Wire Leads | 8 W | 1600 RPM | Ball | 51 CFM | 1.43 mł/min | 120 mm | 120 mm | 60000 Hrs | Tubeaxial | cURus TUV | Dual Voltage | 80 °C | 230 VAC | 115 VAC | |||||||||||
Orion Fans | 48 dB | 38.5 mm | Metal | 2 Terminals | 0.22 in H2O | 54.8 Pa | 10 W | 3100 RPM | Ball | 230 VAC | 105 CFM | 2.94 m³/min | 119.5 mm | Aluminum | 50000 Hrs | Tubeaxial | cURus TUV | 589.7 g | 1.3 lbs | 119.5 mm | IP55 - Dust Protected Water Resistant | ||||||||||||
Orion Fans | 37 dB | 38.5 mm | -10 °C | -10 °C | 70 °C | Polybutylene Terephthalate (PBT) | 2 Terminals | 8 W | 1600 RPM | Ball | 230 VAC | 63 CFM | 1.76 mł/min | 119.5 mm | Aluminum | 60000 Hrs | Tubeaxial | Temperature Sensor | 70 °C | 119.5 mm | 70 mA | ||||||||||||
Orion Fans | 260 VAC | 160 VAC | 42 dB | 38.5 mm | -20 C | -20 °C | 75 ░C | 75 °C | Polybutylene Terephthalate (PBT) | 2 Terminals | 0.28 in H2O | 69.7 Pa | 15 W | 3000 RPM | Ball | 230 VAC | 110 CFM | 3.08 mł/min | 120 mm | 120 mm | Aluminum | 70000 Hrs | Tubeaxial | CE cURus TUV UR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.38 | |
| 10 | $ 16.59 | |||
| 40 | $ 15.61 | |||
| 80 | $ 15.01 | |||
| 120 | $ 13.83 | |||
| 280 | $ 12.94 | |||
| 520 | $ 12.74 | |||
Description
General part information
OA109AP Series
Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Sleeve 110.0 CFM (3.08m³/min) 2 Terminals
