OA109AP-11-1TBSF

Active

Orion Fans

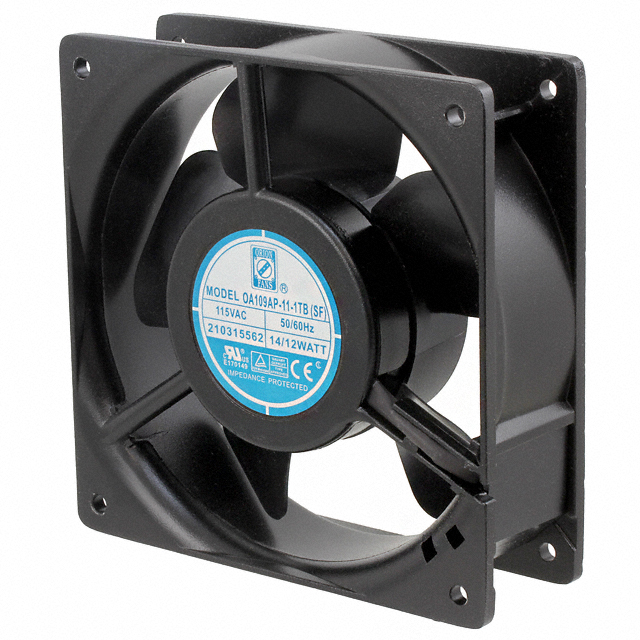

AXIAL FAN, AC, OA109 SERIES, BALL BEARING, SQUARE, 106CFM, 46DB, 115V, 12W, 3100RPM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous EN Technical Data Sheet EN

OA109AP-11-1TBSF

Active

Orion Fans

AXIAL FAN, AC, OA109 SERIES, BALL BEARING, SQUARE, 106CFM, 46DB, 115V, 12W, 3100RPM

Deep-Dive with AI

DocumentsMiscellaneous EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA109AP-11-1TBSF

Air Flow	106 CFM
Air Flow	2.97 mł/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Salt Fog Rated
Lifetime @ Temp.	40000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	46 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12 W
RPM	3100 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.32 in H2O
Static Pressure	79.7 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	499 g
Weight	1.1 lbs
Width [y]	38.5 mm

OA109AP Series

Part	Voltage Range [Max]	Voltage Range [Min]	Noise	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Blade	Termination	Static Pressure	Static Pressure	Power (Watts)	RPM	Bearing Type	Voltage - Rated	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Lifetime @ Temp.	Fan Type	Approval Agency	Features	Weight	Weight	Operating Temperature [Max]	Size / Dimension [z]	Ingress Protection	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps)
Orion Fans OA109AP-22-2TB	260 VAC	160 VAC	35 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Terminals	0.21 in H2O	52.3 Pa	11 W	2300 RPM	Ball	230 VAC	71 CFM	1.99 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR
Orion Fans OA109AP-22-1WB	260 VAC	160 VAC	42 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Ball	230 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR
Orion Fans OA109AP-11-1TBSF			46 dB(A)	38.5 mm	-20 C	-20 °C	70 °C	70 °C	Polybutylene Terephthalate (PBT)	2 Terminals	0.32 in H2O	79.7 Pa	12 W	3100 RPM	Ball	115 VAC	106 CFM	2.97 mł/min	120 mm	120 mm	Aluminum	40000 Hrs	Tubeaxial		Salt Fog Rated	499 g	1.1 lbs
Orion Fans OA109AP-11-1TS			42 dB	38.5 mm	-10 °C	-10 °C	45 °C		Polybutylene Terephthalate (PBT)	2 Terminals	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Sleeve	115 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	30000 Hrs	Tubeaxial	CE cURus TUV UR				45 °C
Orion Fans OA109AP-11-1WB			42 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Ball	115 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR
Orion Fans OA109AP-22-2TB1855			43 dB	38.5 mm					Metal	2 Terminals	0.12 in H2O	30 Pa	13 W	2500 RPM	Ball	230 VAC	85 CFM	2.38 m³/min		119.5 mm	Aluminum	50000 Hrs	Tubeaxial	cURus TUV		589.7 g	1.3 lbs		119.5 mm	IP55 - Dust Protected Water Resistant
Orion Fans OA109AP-11/22-3WB	240 VAC	100 VAC	25 dB(A)	38 mm	-20 C	-20 °C	80 C			4 Wire Leads			8 W	1600 RPM	Ball		51 CFM	1.43 mł/min	120 mm	120 mm		60000 Hrs	Tubeaxial	cURus TUV	Dual Voltage			80 °C			230 VAC	115 VAC
Orion Fans OA109AP-22-1TB1855			48 dB	38.5 mm					Metal	2 Terminals	0.22 in H2O	54.8 Pa	10 W	3100 RPM	Ball	230 VAC	105 CFM	2.94 m³/min		119.5 mm	Aluminum	50000 Hrs	Tubeaxial	cURus TUV		589.7 g	1.3 lbs		119.5 mm	IP55 - Dust Protected Water Resistant
Orion Fans OA109AP-22-1TB03			37 dB	38.5 mm	-10 °C	-10 °C	70 °C		Polybutylene Terephthalate (PBT)	2 Terminals			8 W	1600 RPM	Ball	230 VAC	63 CFM	1.76 mł/min		119.5 mm	Aluminum	60000 Hrs	Tubeaxial		Temperature Sensor			70 °C	119.5 mm				70 mA
Orion Fans OA109AP-22-1TB	260 VAC	160 VAC	42 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Terminals	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Ball	230 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR
