OA109AP-22-1TB

Active

Orion Fans

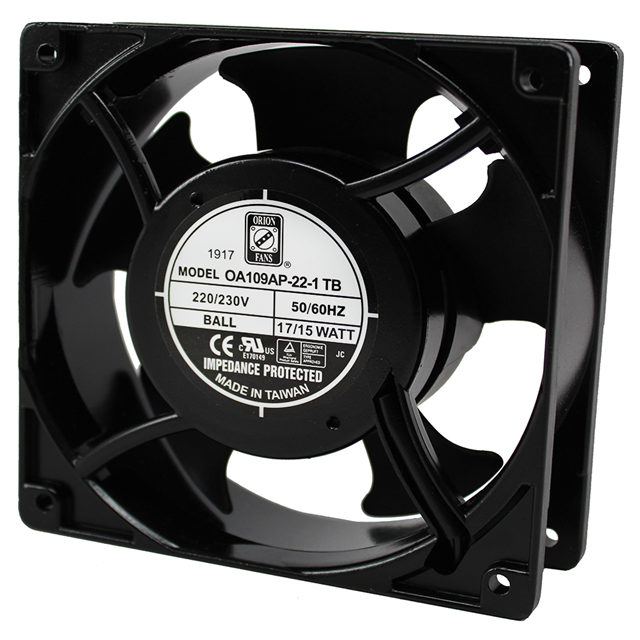

AC FAN, BALL, 120MM, 3000RPM, 230V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

OA109AP-22-1TB

Active

Orion Fans

AC FAN, BALL, 120MM, 3000RPM, 230V ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA109AP-22-1TB

Air Flow	110 CFM
Air Flow	3.08 mł/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	42 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
RPM	3000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	69.7 Pa
Static Pressure	0.28 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Voltage Range [Max]	260 VAC
Voltage Range [Min]	160 VAC
Width [y]	38.5 mm

OA109AP Series

Part	Voltage Range [Max]	Voltage Range [Min]	Noise	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Blade	Termination	Static Pressure	Static Pressure	Power (Watts)	RPM	Bearing Type	Voltage - Rated	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Lifetime @ Temp.	Fan Type	Approval Agency	Features	Weight	Weight	Operating Temperature [Max]	Size / Dimension [z]	Ingress Protection	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps)
Orion Fans OA109AP-22-2TB	260 VAC	160 VAC	35 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Terminals	0.21 in H2O	52.3 Pa	11 W	2300 RPM	Ball	230 VAC	71 CFM	1.99 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR
Orion Fans OA109AP-22-1WB	260 VAC	160 VAC	42 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Ball	230 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR
Orion Fans OA109AP-11-1TBSF			46 dB(A)	38.5 mm	-20 C	-20 °C	70 °C	70 °C	Polybutylene Terephthalate (PBT)	2 Terminals	0.32 in H2O	79.7 Pa	12 W	3100 RPM	Ball	115 VAC	106 CFM	2.97 mł/min	120 mm	120 mm	Aluminum	40000 Hrs	Tubeaxial		Salt Fog Rated	499 g	1.1 lbs
Orion Fans OA109AP-11-1TS			42 dB	38.5 mm	-10 °C	-10 °C	45 °C		Polybutylene Terephthalate (PBT)	2 Terminals	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Sleeve	115 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	30000 Hrs	Tubeaxial	CE cURus TUV UR				45 °C
Orion Fans OA109AP-11-1WB			42 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Ball	115 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR
Orion Fans OA109AP-22-2TB1855			43 dB	38.5 mm					Metal	2 Terminals	0.12 in H2O	30 Pa	13 W	2500 RPM	Ball	230 VAC	85 CFM	2.38 m³/min		119.5 mm	Aluminum	50000 Hrs	Tubeaxial	cURus TUV		589.7 g	1.3 lbs		119.5 mm	IP55 - Dust Protected Water Resistant
Orion Fans OA109AP-11/22-3WB	240 VAC	100 VAC	25 dB(A)	38 mm	-20 C	-20 °C	80 C			4 Wire Leads			8 W	1600 RPM	Ball		51 CFM	1.43 mł/min	120 mm	120 mm		60000 Hrs	Tubeaxial	cURus TUV	Dual Voltage			80 °C			230 VAC	115 VAC
Orion Fans OA109AP-22-1TB1855			48 dB	38.5 mm					Metal	2 Terminals	0.22 in H2O	54.8 Pa	10 W	3100 RPM	Ball	230 VAC	105 CFM	2.94 m³/min		119.5 mm	Aluminum	50000 Hrs	Tubeaxial	cURus TUV		589.7 g	1.3 lbs		119.5 mm	IP55 - Dust Protected Water Resistant
Orion Fans OA109AP-22-1TB03			37 dB	38.5 mm	-10 °C	-10 °C	70 °C		Polybutylene Terephthalate (PBT)	2 Terminals			8 W	1600 RPM	Ball	230 VAC	63 CFM	1.76 mł/min		119.5 mm	Aluminum	60000 Hrs	Tubeaxial		Temperature Sensor			70 °C	119.5 mm				70 mA
Orion Fans OA109AP-22-1TB	260 VAC	160 VAC	42 dB	38.5 mm	-20 C	-20 °C	75 ░C	75 °C	Polybutylene Terephthalate (PBT)	2 Terminals	0.28 in H2O	69.7 Pa	15 W	3000 RPM	Ball	230 VAC	110 CFM	3.08 mł/min	120 mm	120 mm	Aluminum	70000 Hrs	Tubeaxial	CE cURus TUV UR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.10
		10	$ 17.92
		40	$ 16.72
		80	$ 16.16
		120	$ 15.83
		280	$ 15.17
		520	$ 14.71
Newark	Each	1	$ 20.64
		5	$ 20.13
		10	$ 19.61
		25	$ 18.58
		50	$ 17.55
		100	$ 16.52

Description

General part information

OA109AP Series

Fan Tubeaxial 230VAC Square - 120mm L x 120mm H Ball 110.0 CFM (3.08m³/min) 2 Terminals

Documents

Technical documentation and resources

No documents available
