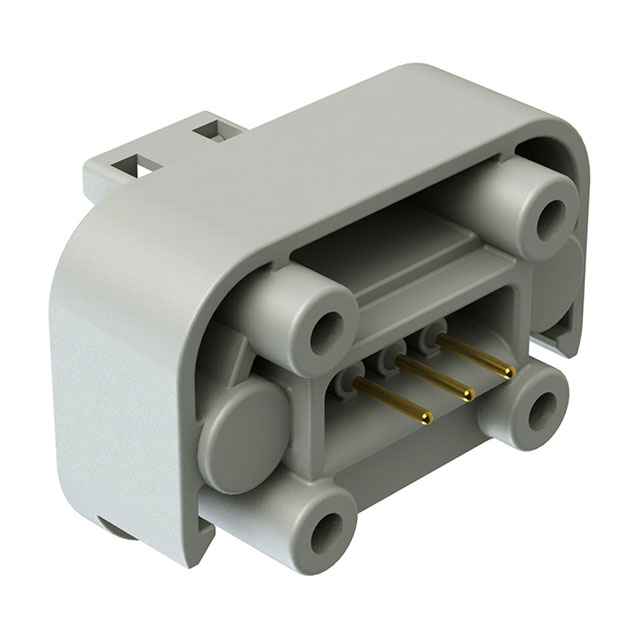

ATM15-3P-BM01
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 3POS
Deep-Dive with AI
Search across all available documentation for this part.
ATM15-3P-BM01
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 3POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM15-3P-BM01 |
|---|---|
| Applications | Industrial, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Latch Holder |
| Features | Board Guide, Mating Flange, Mounting Flange |
| Ingress Protection | IP67 |
| Insulation Color | Gray |
| Insulation Height | 1.189 in |
| Insulation Height | 30.2 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.21 | |
| 10 | $ 4.71 | |||
| 25 | $ 4.45 | |||
| 40 | $ 4.35 | |||
| 225 | $ 4.13 | |||
| 450 | $ 3.83 | |||
Description
General part information
ATM15 Series
Connector Header Through Hole 3 position
Documents
Technical documentation and resources
