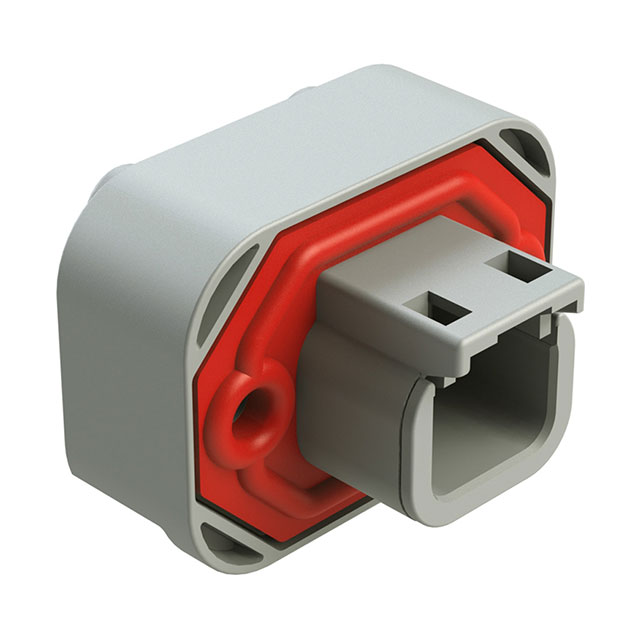

ATM15-2P-BM01
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 2POS
Deep-Dive with AI
Search across all available documentation for this part.
ATM15-2P-BM01
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM15-2P-BM01 |
|---|---|
| Applications | Industrial, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Latch Holder |
| Features | Board Guide, Mating Flange, Mounting Flange |
| Ingress Protection | IP67 |
| Insulation Color | Gray |
| Insulation Height | 1.189 in |
| Insulation Height | 30.2 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
ATM15 Series
| Part | Current Rating (Amps) | Style | Insulation Color | Connector Type | Number of Positions Loaded | Contact Shape | Fastening Type | Ingress Protection | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Voltage Rating | Termination | Contact Material | Mounting Type | Contact Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Finish - Post | Features | Insulation Height | Insulation Height | Applications | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 1 | -55 °C | 125 °C | Thermoplastic | Tin | Board Guide Mating Flange Mounting Flange Potting Wall | 1.189 in | 30.2 mm | Automotive Industrial | ||
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 2 | -55 °C | 125 °C | Thermoplastic | Gold | Board Guide Mating Flange Mounting Flange Potting Wall | 1.189 in | 30.2 mm | Automotive Industrial | Gold | 12 |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 2 | -55 °C | 125 °C | Thermoplastic | Tin | Board Guide Mating Flange Mounting Flange Potting Wall | 1.189 in | 30.2 mm | Automotive Industrial | 6 | |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 2 | -55 °C | 125 °C | Thermoplastic | Gold | Board Guide Mating Flange Mounting Flange Potting Wall | 1.189 in | 30.2 mm | Automotive Industrial | Gold | 8 |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 1 | -55 °C | 125 °C | Thermoplastic | Gold | Board Guide Mating Flange Mounting Flange | 1.189 in | 30.2 mm | Automotive Industrial | Gold | 2 |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Black | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 2 | -55 °C | 125 °C | Thermoplastic | Tin | Board Guide Mating Flange Mounting Flange | 1.189 in | 30.2 mm | Automotive Industrial | 12 | |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 2 | -55 °C | 125 °C | Thermoplastic | Tin | Board Guide Mating Flange Mounting Flange Potting Wall | 1.189 in | 30.2 mm | Automotive Industrial | 4 | |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 2 | -55 °C | 125 °C | Thermoplastic | Tin | Board Guide Mating Flange Mounting Flange Potting Wall | 1.189 in | 30.2 mm | Automotive Industrial | 12 | |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 1 | -55 °C | 125 °C | Thermoplastic | Gold | Board Guide Mating Flange Mounting Flange Potting Wall | 1.189 in | 30.2 mm | Automotive Industrial | Gold | 2 |
Amphenol Sine Systems Corp | 7.5 A | Board to Cable/Wire | Gray | Receptacle | All | Circular | Latch Holder | IP67 | Shrouded - 4 Wall | 0.12 in | 3.05 mm | 250 VDC | Solder | Copper Alloy | Through Hole | Male Pin | 1 | -55 °C | 125 °C | Thermoplastic | Gold | Board Guide Mating Flange Mounting Flange | 1.189 in | 30.2 mm | Automotive Industrial | Gold |
