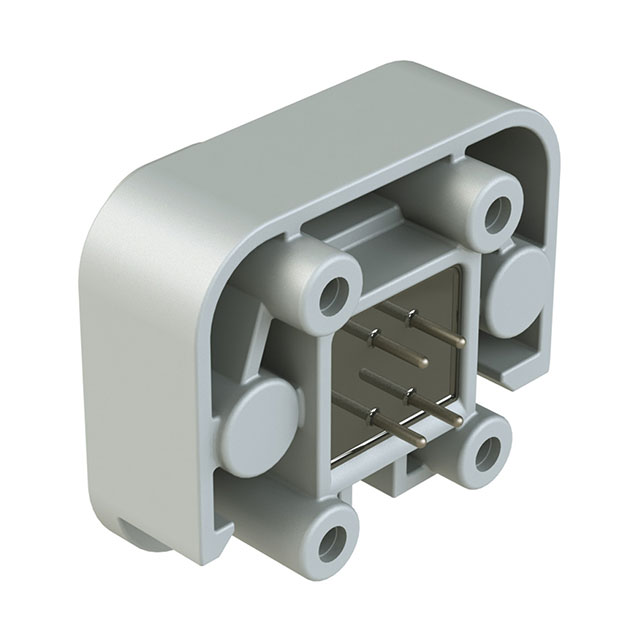

ATM15-4P-BM04

Active

Amphenol Sine Systems Corp

CONN HEADER VERT 4POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet

ATM15-4P-BM04

Active

Amphenol Sine Systems Corp

CONN HEADER VERT 4POS

Deep-Dive with AI

DocumentsA Series Family Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATM15-4P-BM04

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	7.5 A
Fastening Type	Latch Holder
Features	Mounting Flange, Board Guide, Potting Wall, Mating Flange
Ingress Protection	IP67
Insulation Color	Gray
Insulation Height	1.189 in
Insulation Height	30.2 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

ATM15 Series

Part	Current Rating (Amps)	Style	Insulation Color	Connector Type	Number of Positions Loaded	Contact Shape	Fastening Type	Ingress Protection	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Termination	Contact Material	Mounting Type	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish - Post	Features	Insulation Height	Insulation Height	Applications	Contact Finish - Mating	Number of Positions
Amphenol Sine Systems Corp ATM15-3P-BM04	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	1	-55 °C	125 °C	Thermoplastic	Tin	Board Guide Mating Flange Mounting Flange Potting Wall	1.189 in	30.2 mm	Automotive Industrial
Amphenol Sine Systems Corp ATM15-12PB-BM02	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	2	-55 °C	125 °C	Thermoplastic	Gold	Board Guide Mating Flange Mounting Flange Potting Wall	1.189 in	30.2 mm	Automotive Industrial	Gold	12
Amphenol Sine Systems Corp ATM15-6P-BM04	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	2	-55 °C	125 °C	Thermoplastic	Tin	Board Guide Mating Flange Mounting Flange Potting Wall	1.189 in	30.2 mm	Automotive Industrial		6
Amphenol Sine Systems Corp ATM15-08PC-BM02	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	2	-55 °C	125 °C	Thermoplastic	Gold	Board Guide Mating Flange Mounting Flange Potting Wall	1.189 in	30.2 mm	Automotive Industrial	Gold	8
Amphenol Sine Systems Corp ATM15-2P-BM01	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	1	-55 °C	125 °C	Thermoplastic	Gold	Board Guide Mating Flange Mounting Flange	1.189 in	30.2 mm	Automotive Industrial	Gold	2
Amphenol Sine Systems Corp ATM15-12PB-BM03	7.5 A	Board to Cable/Wire	Black	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	2	-55 °C	125 °C	Thermoplastic	Tin	Board Guide Mating Flange Mounting Flange	1.189 in	30.2 mm	Automotive Industrial		12
Amphenol Sine Systems Corp ATM15-4P-BM04	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	2	-55 °C	125 °C	Thermoplastic	Tin	Board Guide Mating Flange Mounting Flange Potting Wall	1.189 in	30.2 mm	Automotive Industrial		4
Amphenol Sine Systems Corp ATM15-12PB-BM04	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	2	-55 °C	125 °C	Thermoplastic	Tin	Board Guide Mating Flange Mounting Flange Potting Wall	1.189 in	30.2 mm	Automotive Industrial		12
Amphenol Sine Systems Corp ATM15-2P-BM02	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	1	-55 °C	125 °C	Thermoplastic	Gold	Board Guide Mating Flange Mounting Flange Potting Wall	1.189 in	30.2 mm	Automotive Industrial	Gold	2
Amphenol Sine Systems Corp ATM15-3P-BM01	7.5 A	Board to Cable/Wire	Gray	Receptacle	All	Circular	Latch Holder	IP67	Shrouded - 4 Wall	0.12 in	3.05 mm	250 VDC	Solder	Copper Alloy	Through Hole	Male Pin	1	-55 °C	125 °C	Thermoplastic	Gold	Board Guide Mating Flange Mounting Flange	1.189 in	30.2 mm	Automotive Industrial	Gold
