3010-14-041-11-00

Active

CnC Tech, LLC

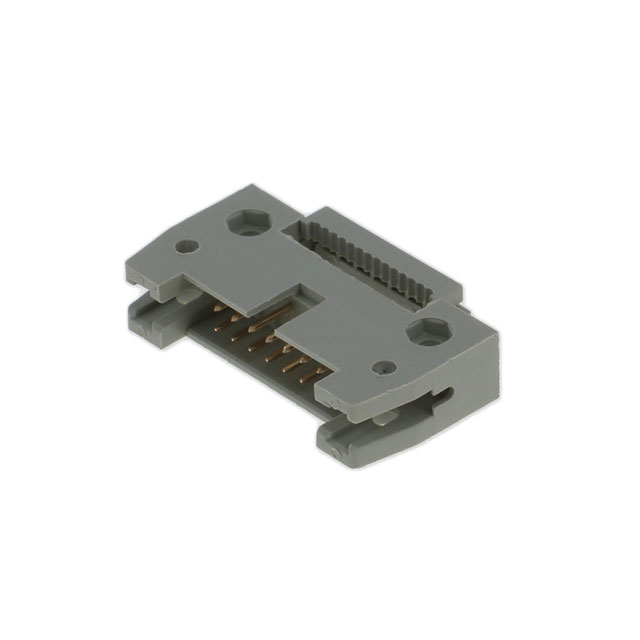

CONN HEADER 14POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3010-14-041-11-00

Active

CnC Tech, LLC

CONN HEADER 14POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-14-041-11-00

Cable Termination	IDC
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

3010-14 Series

Part	Mounting Type	Insulation Height	Insulation Height	Fastening Type	Features	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Connector Type	Insulation Material	Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Contact Material	Termination	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Cable Termination	Contact Finish Thickness	Contact Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3010-14-002-13-00	Through Hole Right Angle	0.327 "	8.3 mm	Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square	0.134 in	3.4 mm
CnC Tech, LLC 3010-14-003-13-00	Surface Mount			Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square			17 mm	0.669 "
CnC Tech, LLC 3010-14-041-11-00	Free Hanging (In-Line)			Push-Pull	Polarizing Key									Header			Male Pin			2				14								0.1 in	2.54 mm	2.54 mm	0.1 in	IDC	Flash	Gold
CnC Tech, LLC 3010-14-003-11-00	Surface Mount			Push-Pull	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash		2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All		14	Brass	Solder	Square			17 mm	0.669 "
CnC Tech, LLC 3010-14-001-12-00	Through Hole			Latch Lock/Eject Hooks Short	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square	0.134 in	3.4 mm	17 mm	0.669 "
CnC Tech, LLC 3010-14-002-13-99	Through Hole Right Angle	0.327 "	8.3 mm	Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0			2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2		All		14	Brass	Solder	Square	0.134 in	3.4 mm										2.03 µm	80 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.59
		10	$ 1.39
		80	$ 1.24
		440	$ 1.04

Description

General part information

3010-14 Series

14 Position Rectangular Header Connector IDC Gold
