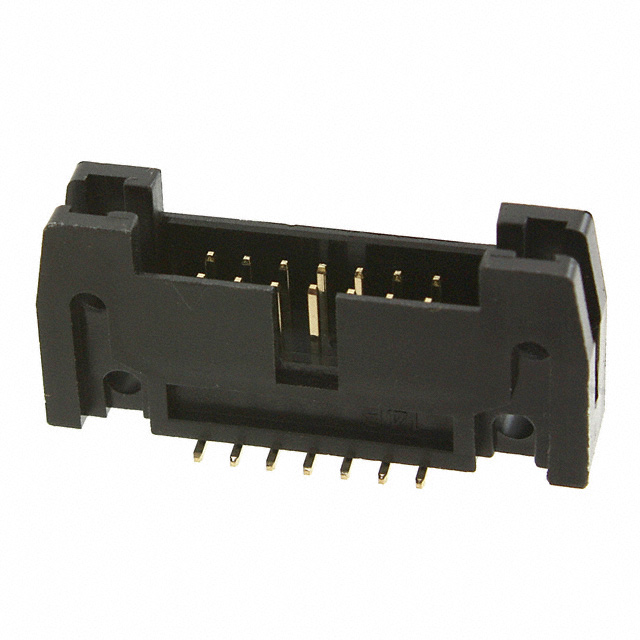

3010-14-003-11-00

Obsolete

CnC Tech, LLC

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents3x10 Soldering Recommendations Datasheet

3010-14-003-11-00

Obsolete

CnC Tech, LLC

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

Documents3x10 Soldering Recommendations Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-14-003-11-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3010-14 Series

Part	Mounting Type	Insulation Height	Insulation Height	Fastening Type	Features	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Connector Type	Insulation Material	Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Contact Material	Termination	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Cable Termination	Contact Finish Thickness	Contact Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3010-14-002-13-00	Through Hole Right Angle	0.327 "	8.3 mm	Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square	0.134 in	3.4 mm
CnC Tech, LLC 3010-14-003-13-00	Surface Mount			Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square			17 mm	0.669 "
CnC Tech, LLC 3010-14-041-11-00	Free Hanging (In-Line)			Push-Pull	Polarizing Key									Header			Male Pin			2				14								0.1 in	2.54 mm	2.54 mm	0.1 in	IDC	Flash	Gold
CnC Tech, LLC 3010-14-003-11-00	Surface Mount			Push-Pull	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash		2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All		14	Brass	Solder	Square			17 mm	0.669 "
CnC Tech, LLC 3010-14-001-12-00	Through Hole			Latch Lock/Eject Hooks Short	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square	0.134 in	3.4 mm	17 mm	0.669 "
CnC Tech, LLC 3010-14-002-13-99	Through Hole Right Angle	0.327 "	8.3 mm	Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0			2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2		All		14	Brass	Solder	Square	0.134 in	3.4 mm										2.03 µm	80 µin
