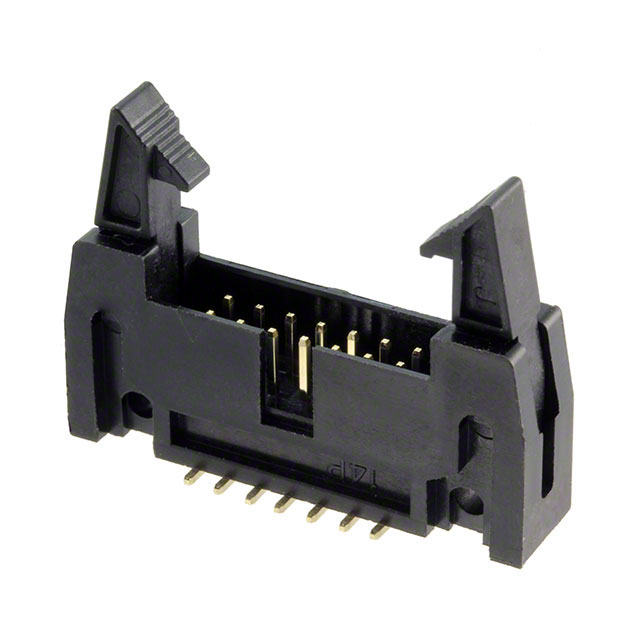

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC, Flat Ribbon Cable Mating Chart Soldering Guide 3X10,3X20,3221 Series +2

3010-14-003-13-00

Active

CnC Tech, LLC

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

DocumentsIDC, Flat Ribbon Cable Mating Chart Soldering Guide 3X10,3X20,3221 Series +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-14-003-13-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3010-14 Series

Part	Mounting Type	Insulation Height	Insulation Height	Fastening Type	Features	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Connector Type	Insulation Material	Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Contact Material	Termination	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Cable Termination	Contact Finish Thickness	Contact Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3010-14-002-13-00	Through Hole Right Angle	0.327 "	8.3 mm	Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square	0.134 in	3.4 mm
CnC Tech, LLC 3010-14-003-13-00	Surface Mount			Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square			17 mm	0.669 "
CnC Tech, LLC 3010-14-041-11-00	Free Hanging (In-Line)			Push-Pull	Polarizing Key									Header			Male Pin			2				14								0.1 in	2.54 mm	2.54 mm	0.1 in	IDC	Flash	Gold
CnC Tech, LLC 3010-14-003-11-00	Surface Mount			Push-Pull	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash		2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All		14	Brass	Solder	Square			17 mm	0.669 "
CnC Tech, LLC 3010-14-001-12-00	Through Hole			Latch Lock/Eject Hooks Short	Keying Slot	0.1 in	2.54 mm	UL94 V-0	Flash	250 VAC	2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2	Gold	All	3 A	14	Brass	Solder	Square	0.134 in	3.4 mm	17 mm	0.669 "
CnC Tech, LLC 3010-14-002-13-99	Through Hole Right Angle	0.327 "	8.3 mm	Latch Lock/Eject Hooks Long	Keying Slot	0.1 in	2.54 mm	UL94 V-0			2.54 mm	0.1 in	Shrouded - 4 Wall	Header	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	2		All		14	Brass	Solder	Square	0.134 in	3.4 mm										2.03 µm	80 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.99
		10	$ 0.83
		80	$ 0.75
		792	$ 0.60

Description

General part information

3010-14 Series

Connector Header Surface Mount 14 position 0.100" (2.54mm)

Documents

Technical documentation and resources

IDC, Flat Ribbon Cable Mating Chart

Datasheet

Soldering Guide 3X10,3X20,3221 Series

Datasheet

IDC Header Mating Guide

Datasheet
