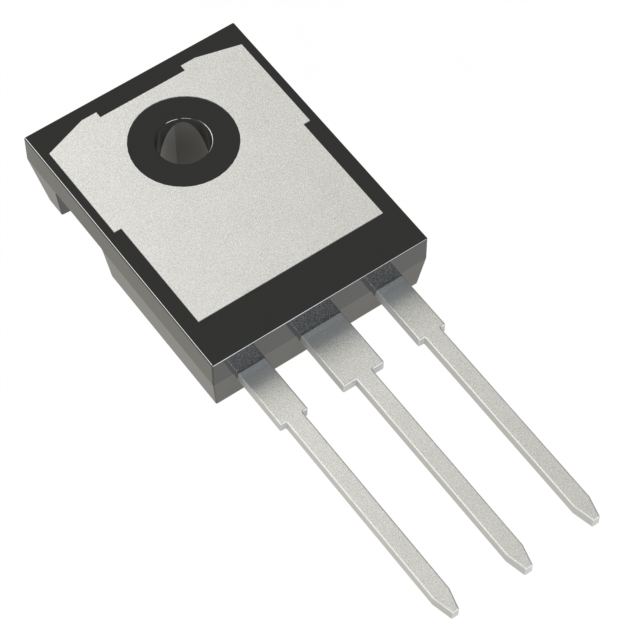

WNSC6D20650CW6Q
ActiveWeEn Semiconductors Co., Ltd
DIODE ARR SIC 650V 20A TO247-3
Deep-Dive with AI
Search across all available documentation for this part.
WNSC6D20650CW6Q
ActiveWeEn Semiconductors Co., Ltd
DIODE ARR SIC 650V 20A TO247-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WNSC6D20650CW6Q |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 20 A |
| Current - Reverse Leakage @ Vr | 50 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | 175 °C |
| Package / Case | TO-247-3 |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Supplier Device Package | TO-247-3 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.22 | |
| 30 | $ 4.14 | |||
| 120 | $ 3.55 | |||
| 510 | $ 3.15 | |||
| 1020 | $ 2.70 | |||
| 2010 | $ 2.54 | |||
Description
General part information
WNSC6 Series
Diode Array 1 Pair Common Cathode 650 V 20A Through Hole TO-247-3
Documents
Technical documentation and resources
No documents available
