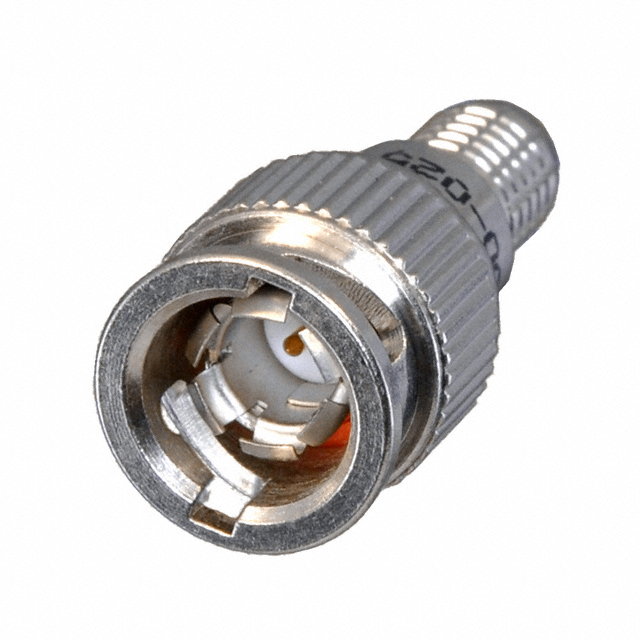

UPL250-025
ActiveCinch Connectivity Solutions Trompeter
CONN MINI BNC PLG STR 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
UPL250-025
ActiveCinch Connectivity Solutions Trompeter
CONN MINI BNC PLG STR 75 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPL250-025 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Lucent 734A |
| Center Contact Plating | Gold |
| Connector Style | Mini, BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
UPL250 Series
| Part | Connector Style | Housing Color | Contact Termination | Cable Group | Center Contact Plating | Fastening Type | Number of Ports | Mounting Type | Impedance | Includes | Body Material | Frequency - Max [Max] | Body Finish | Connector Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | BNC Mini | Silver | Crimp | RG-179 | Gold | Bayonet Lock | 1 | Free Hanging (In-Line) | 75 Ohms | 1 Connector 1 Contact 1 Insert 1 Sleeve | Brass | 4 GHz | Nickel | Male Pin Plug | Crimp |
Cinch Connectivity Solutions Trompeter | BNC Mini | Silver | Crimp | Lucent 735A | Gold | Bayonet Lock | 1 | Free Hanging (In-Line) | 75 Ohms | Brass | 4 GHz | Nickel | Male Pin Plug | Crimp | |
Cinch Connectivity Solutions Trompeter | BNC Mini | Silver | Crimp | Lucent 734A | Gold | Bayonet Lock | 1 | Free Hanging (In-Line) | 75 Ohms | Brass | 4 GHz | Nickel | Male Pin Plug | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 23.54 | |
Description
General part information
UPL250 Series
BNC, Mini Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
