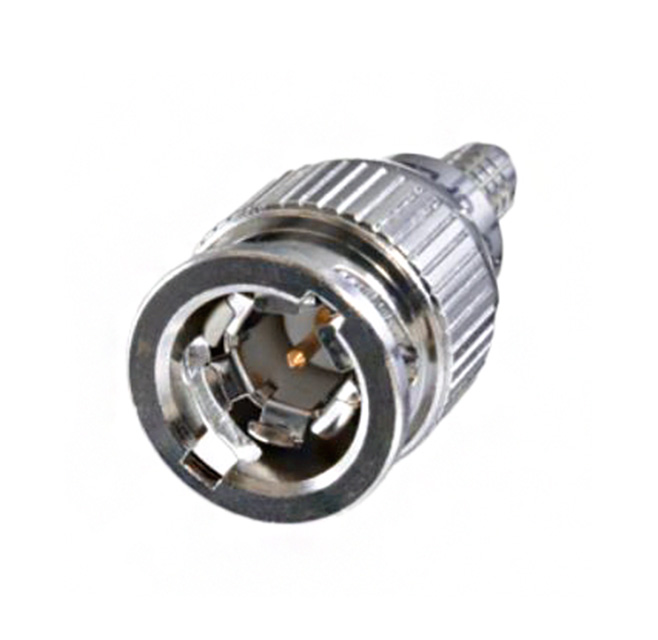

UPL250-004

Active

Cinch Connectivity Solutions Trompeter

CONN MINI BNC PLG STR 75 OHM

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN MINI BNC PLG STR 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	UPL250-004

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179
Center Contact Plating	Gold
Connector Style	Mini, BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Contact, 1 Sleeve, 1 Insert, 1 Connector
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Connector Style	Housing Color	Contact Termination	Cable Group	Center Contact Plating	Fastening Type	Number of Ports	Mounting Type	Impedance	Includes	Body Material	Frequency - Max [Max]	Body Finish	Connector Type	Shield Termination
Cinch Connectivity Solutions Trompeter UPL250-004	BNC Mini	Silver	Crimp	RG-179	Gold	Bayonet Lock	1	Free Hanging (In-Line)	75 Ohms	1 Connector 1 Contact 1 Insert 1 Sleeve	Brass	4 GHz	Nickel	Male Pin Plug	Crimp
Cinch Connectivity Solutions Trompeter UPL250-026	BNC Mini	Silver	Crimp	Lucent 735A	Gold	Bayonet Lock	1	Free Hanging (In-Line)	75 Ohms		Brass	4 GHz	Nickel	Male Pin Plug	Crimp
Cinch Connectivity Solutions Trompeter UPL250-025	BNC Mini	Silver	Crimp	Lucent 734A	Gold	Bayonet Lock	1	Free Hanging (In-Line)	75 Ohms		Brass	4 GHz	Nickel	Male Pin Plug	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, Mini Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
