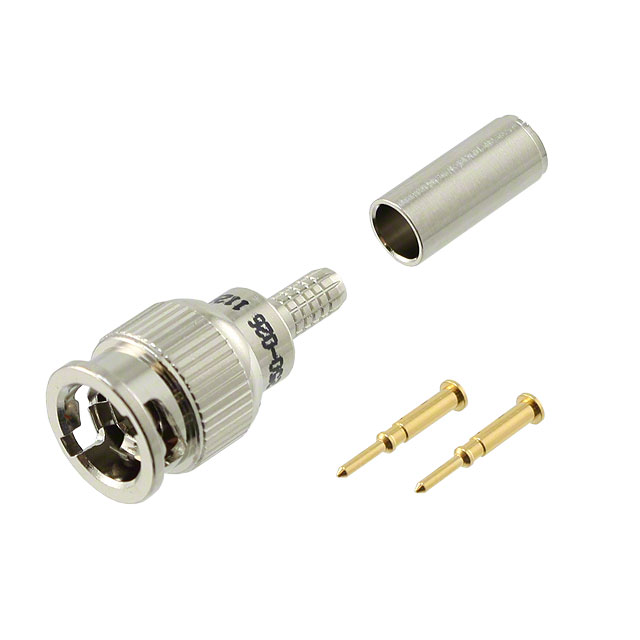

UPL250-026
ActiveCinch Connectivity Solutions Trompeter
CONN MINI BNC PLG STR 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
UPL250-026
ActiveCinch Connectivity Solutions Trompeter
CONN MINI BNC PLG STR 75 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPL250-026 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Lucent 735A |
| Center Contact Plating | Gold |
| Connector Style | Mini, BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.30 | |
| 10 | $ 8.37 | |||
| 25 | $ 7.88 | |||
| 50 | $ 7.68 | |||
| 100 | $ 7.48 | |||
| 300 | $ 6.67 | |||
| 500 | $ 6.49 | |||
Description
General part information
UPL250 Series
BNC, Mini Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
