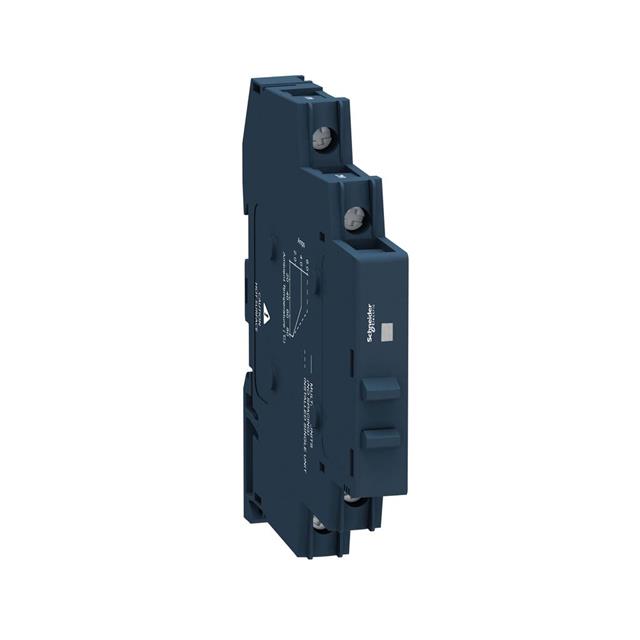

SSM1A16B7

Active

SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE RELAY, SPST-NO, 6 A, 280 VAC, DIN RAIL, SCREW, ZERO CROSSING

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE RELAY, SPST-NO, 6 A, 280 VAC, DIN RAIL, SCREW, ZERO CROSSING

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Load Current	Termination Style	Package / Case
SQUARE D BY SCHNEIDER ELECTRIC SSM1A312B7	18 VAC/DC	36 VAC	-30 ░C	80 C	CSA UL	AC	48 V	600 V	DIN Rail	12 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A312P7R	200 VAC	265 VAC	-30 ░C	80 C	CSA UL	AC	48 V	600 V	DIN Rail	12 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A112F7R	90 VAC	140 VAC	-30 ░C	80 C	CSA UL	AC	24 V	280 V	DIN Rail	12 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A112BD	4 V	32 V	-30 ░C	80 C	CSA UL	AC Zero Cross	24 V	280 V	DIN Rail	12 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A16B7	18 VAC/DC	36 VAC	-30 ░C	80 C	CSA UL	AC Zero Cross	24 V	280 V	DIN Rail	6 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A430M7	90 VAC	280 VAC/DC	-30 ░C	80 C	CSA UL	AC	48 V	600 V	DIN Rail	30 A	Screw Terminal	SSR with Integrated Heat Sink
SQUARE D BY SCHNEIDER ELECTRIC SSM1A312F7	90 VAC	140 VAC	-30 ░C	80 C	CSA UL	AC	48 V	600 V	DIN Rail	12 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A112B7R	18 VAC/DC	36 VAC	-30 ░C	80 C	CSA UL	AC	24 V	280 V	DIN Rail	12 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A112BDR	4 V	32 V	-30 ░C	80 C	CSA UL	AC	24 V	280 V	DIN Rail	12 A	Screw Terminal	Module
SQUARE D BY SCHNEIDER ELECTRIC SSM1A16P7	200 VAC	265 VAC	-30 ░C	80 C	CSA UL	AC Zero Cross	24 V	280 V	DIN Rail	6 A	Screw Terminal	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
