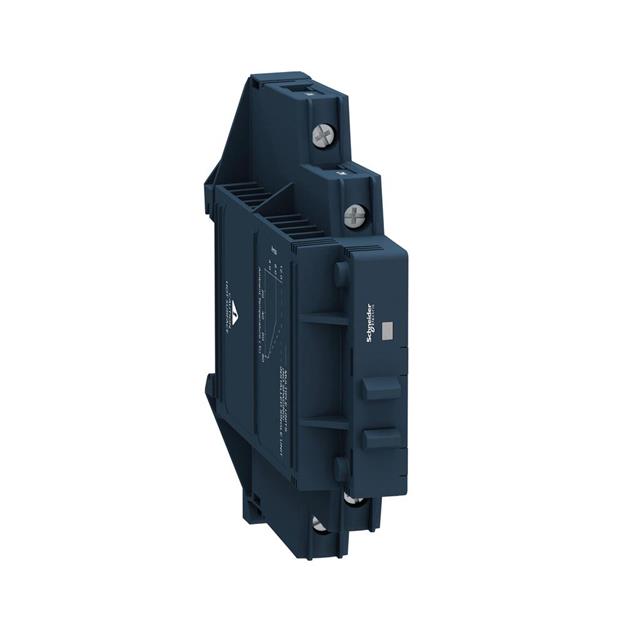

SSM1A312B7 - SSM1A112P7

SSM1A312B7

Obsolete
SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE RELAY, SPST-NO, 12 A, 600 VAC, DIN RAIL, SCREW, ZERO CROSSING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions ENManufacturer Catalogue EN+4
SSM1A312B7 - SSM1A112P7

SSM1A312B7

Obsolete
SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE RELAY, SPST-NO, 12 A, 600 VAC, DIN RAIL, SCREW, ZERO CROSSING

Deep-Dive with AI

DocumentsHandling Instructions ENManufacturer Catalogue EN+4

Technical Specifications

Parameters and characteristics for this part

SpecificationSSM1A312B7
Approval AgencyCSA, UL
Load Current12 A
Mounting TypeDIN Rail
Operating Temperature [Max]80 C
Operating Temperature [Min]-30 ░C
Output TypeAC
Package / CaseModule
Termination StyleScrew Terminal
Voltage - Input [Max]36 VAC
Voltage - Input [Min]18 VAC/DC
Voltage - Load [Max]600 V
Voltage - Load [Min]48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 57.34
10$ 54.32
25$ 51.30
50$ 48.29
100$ 45.27
NewarkEach 1$ 61.56
5$ 57.37
10$ 52.59
25$ 49.31
50$ 43.33
100$ 41.54
250$ 40.64

Description

General part information

SSM1A Series

Solid State SPST-NO (1 Form A) Module
