0351510410
ActiveMolex

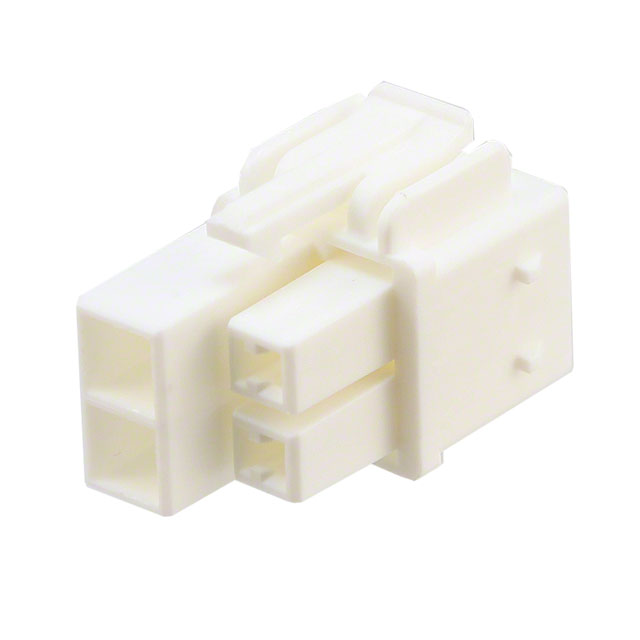

CONN HSG RCPT 4POS 6.20MM NAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0351510410
ActiveMolex
CONN HSG RCPT 4POS 6.20MM NAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0351510410 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Blade Socket, Male Blade |
| Fastening Type | Latch Lock |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 6.2 mm |
| Pitch [x] | 0.244 in |
| Row Spacing | 8.9 mm |
| Row Spacing | 0.35 in |
| Stacking Direction | Top to Bottom and Side to Side |
035151 Series
| Part | Contact Type | Fastening Type | Number of Rows | Contact Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Type | Material - Insulation | Number of Positions | Note | Pitch [x] | Pitch [x] | Row Spacing | Row Spacing | Stacking Direction | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | ||||||||||||||||||
Molex | Female Blade Socket | Latch Lock | 1 | Crimp | Free Hanging (In-Line) | -40 °C | 120 °C | Blue | Plug | Polybutylene Terephthalate (PBT) | 1 | Contacts Not Included | ||||||
Molex | Female Blade Socket | Latch Lock | 1 | Crimp | Free Hanging (In-Line) | -40 °C | 120 °C | Natural | Plug | Polybutylene Terephthalate (PBT) | 1 | Contacts Not Included | ||||||
Molex | Female Blade Socket Male Blade | Latch Lock | 2 | Crimp | Free Hanging (In-Line) | -40 °C | 120 °C | Natural | Plug | Polycarbonate (PC) Polyethylene Terephthalate (PET) | 6 | Contacts Not Included | 0.287 in | 7.3 mm | 7.8 mm | 0.307 in | Top to Bottom and Side to Side | |
Molex | ||||||||||||||||||
Molex | Female Blade Socket Male Blade | Latch Lock | 2 | Crimp | Free Hanging (In-Line) | -40 °C | 120 °C | Natural | Receptacle | Polybutylene Terephthalate (PBT) | 4 | Contacts Not Included | 0.244 in | 6.2 mm | 8.9 mm | 0.35 in | Top to Bottom and Side to Side | |
Molex | Female Blade Socket | Latch Lock | 1 | Crimp | Free Hanging (In-Line) | -40 °C | 120 °C | Natural | Receptacle | Polycarbonate (PC) Polyethylene Terephthalate (PET) | 2 | Contacts Not Included | 0.244 in | 6.2 mm | Side to Side | |||
Molex | Female Blade Socket Male Blade | Latch Lock | 1 | Crimp | Free Hanging (In-Line) | -40 °C | 110 °C | Natural | Plug | 1 | Contacts Not Included | Side to Side | 300 VDC | |||||
Molex | Female Blade Socket Male Blade | Latch Lock | 2 | Crimp | Free Hanging (In-Line) | -40 °C | 120 °C | Blue | Receptacle | Polybutylene Terephthalate (PBT) | 4 | Contacts Not Included | 0.244 in | 6.2 mm | 8.9 mm | 0.35 in | Top to Bottom and Side to Side | |
Molex | Female Blade Socket Male Blade | Latch Lock | 1 | Crimp | Free Hanging (In-Line) | -40 °C | 120 °C | Blue | Plug | Polybutylene Terephthalate (PBT) | Contacts Not Included | 0.287 in | 7.3 mm | Side to Side |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
Description
General part information
035151 Series
4 Position Blade Type Power Housing Connector Receptacle Natural 0.244" (6.20mm)
