0351510110

Active

Molex

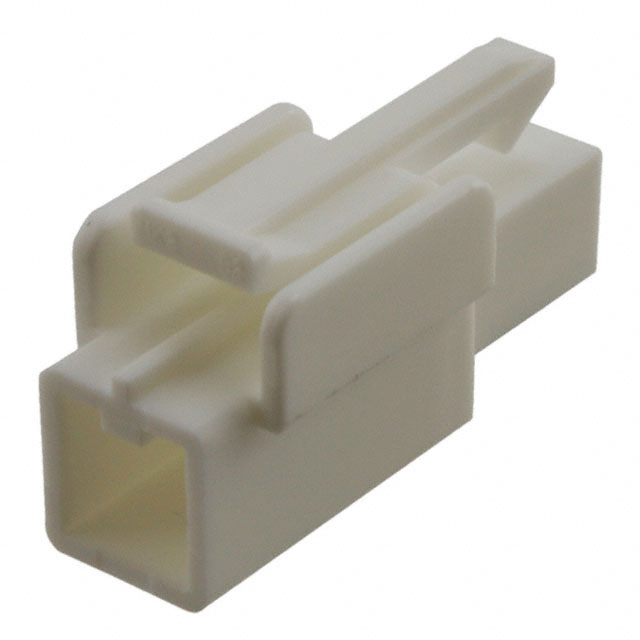

CONN HSG PLUG 1POS NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

0351510110

Active

Molex

CONN HSG PLUG 1POS NATURAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0351510110

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Latch Lock
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C

035151 Series

Part	Contact Type	Fastening Type	Number of Rows	Contact Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Material - Insulation	Number of Positions	Note	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Stacking Direction	Voltage Rating
Molex 0351514619
Molex 0351510114	Female Blade Socket	Latch Lock	1	Crimp	Free Hanging (In-Line)	-40 °C	120 °C	Blue	Plug	Polybutylene Terephthalate (PBT)	1	Contacts Not Included
Molex 0351510110	Female Blade Socket	Latch Lock	1	Crimp	Free Hanging (In-Line)	-40 °C	120 °C	Natural	Plug	Polybutylene Terephthalate (PBT)	1	Contacts Not Included
Molex 0351510619	Female Blade Socket Male Blade	Latch Lock	2	Crimp	Free Hanging (In-Line)	-40 °C	120 °C	Natural	Plug	Polycarbonate (PC) Polyethylene Terephthalate (PET)	6	Contacts Not Included	0.287 in	7.3 mm	7.8 mm	0.307 in	Top to Bottom and Side to Side
Molex 0351514419
Molex 0351510410	Female Blade Socket Male Blade	Latch Lock	2	Crimp	Free Hanging (In-Line)	-40 °C	120 °C	Natural	Receptacle	Polybutylene Terephthalate (PBT)	4	Contacts Not Included	0.244 in	6.2 mm	8.9 mm	0.35 in	Top to Bottom and Side to Side
Molex 0351510219	Female Blade Socket	Latch Lock	1	Crimp	Free Hanging (In-Line)	-40 °C	120 °C	Natural	Receptacle	Polycarbonate (PC) Polyethylene Terephthalate (PET)	2	Contacts Not Included	0.244 in	6.2 mm			Side to Side
Molex 0351510119	Female Blade Socket Male Blade	Latch Lock	1	Crimp	Free Hanging (In-Line)	-40 °C	110 °C	Natural	Plug		1	Contacts Not Included					Side to Side	300 VDC
Molex 0351510414	Female Blade Socket Male Blade	Latch Lock	2	Crimp	Free Hanging (In-Line)	-40 °C	120 °C	Blue	Receptacle	Polybutylene Terephthalate (PBT)	4	Contacts Not Included	0.244 in	6.2 mm	8.9 mm	0.35 in	Top to Bottom and Side to Side
Molex 0351510314	Female Blade Socket Male Blade	Latch Lock	1	Crimp	Free Hanging (In-Line)	-40 °C	120 °C	Blue	Plug	Polybutylene Terephthalate (PBT)		Contacts Not Included	0.287 in	7.3 mm			Side to Side

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.20
		10	$ 0.16
		100	$ 0.11
		1000	$ 0.09
		2500	$ 0.09

Description

General part information

035151 Series

1 Position Blade Type Power Housing Connector Plug Natural

Documents

Technical documentation and resources

No documents available
