2N7002K,215

Obsolete

Freescale Semiconductor - NXP

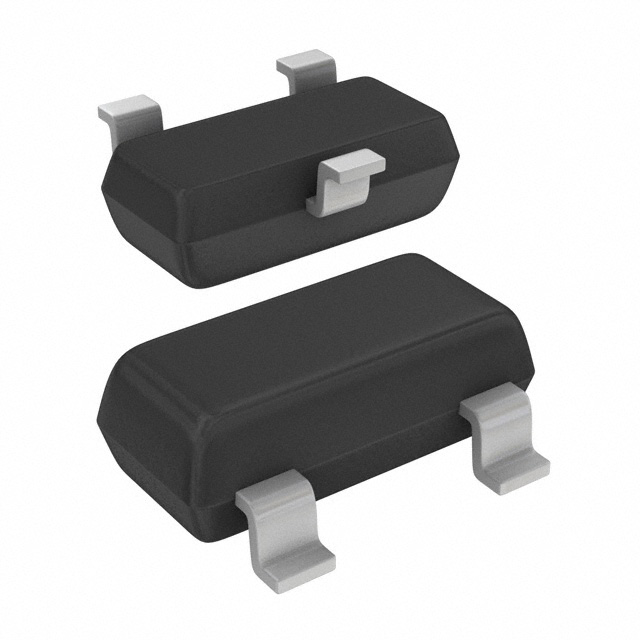

MOSFET N-CH 60V 340MA TO236AB

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

MOSFET N-CH 60V 340MA TO236AB

Technical Specifications

Parameters and characteristics for this part

Specification	2N7002K,215

Current - Continuous Drain (Id) @ 25°C	340 mA
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	40 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power Dissipation (Max) [Max]	830 mW
Rds On (Max) @ Id, Vgs	3.9 Ohm
Supplier Device Package	SOT-23 (TO-236AB)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	15 V
Vgs(th) (Max) @ Id	2 V

Part	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Supplier Device Package	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Power Dissipation (Max) [Max]	Package / Case	Mounting Type	Technology	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature
Freescale Semiconductor - NXP 2N7002PT,115	310 mA	20 V	SC-75	60 V	10 V	5 V	50 pF	N-Channel	250 mW	SC-75 SOT-416	Surface Mount	MOSFET (Metal Oxide)	2.4 V	-55 °C	150 °C	1.6 Ohm
Freescale Semiconductor - NXP 2N7002K,215	340 mA	15 V	SOT-23 (TO-236AB)	60 V			40 pF	N-Channel	830 mW	SC-59 SOT-23-3 TO-236-3	Surface Mount	MOSFET (Metal Oxide)	2 V	-65 °C	150 °C	3.9 Ohm	4.5 V 10 V
Freescale Semiconductor - NXP 2N7002BKT,115	290 mA	20 V	SC-75	60 V	10 V	5 V	50 pF	N-Channel	260 mW	SC-75 SOT-416	Surface Mount	MOSFET (Metal Oxide)	2.1 V			1.6 Ohm		0.6 nC	150 °C
Freescale Semiconductor - NXP 2N7000,126	300 mA	30 V	TO-92-3	60 V			40 pF	N-Channel	830 mW	TO-226-3 TO-92-3	Through Hole	MOSFET (Metal Oxide)	2 V	-55 °C	150 °C	5 Ohm	4.5 V 10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 60 V 340mA (Ta) 830mW (Ta) Surface Mount SOT-23 (TO-236AB)
