09330062752

Active

HARTING Technology Group

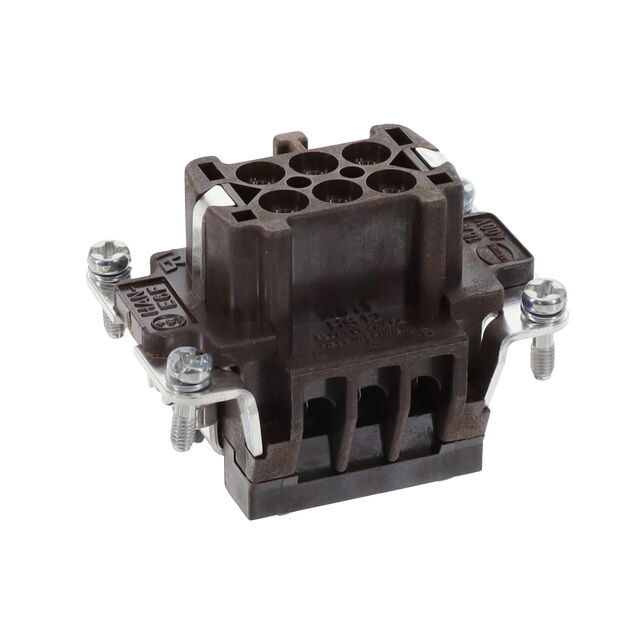

HAN E 06 POS. F INSERT CRIMP MATL PPS / ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN E 06 POS. F INSERT CRIMP MATL PPS / ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Termination Style	Number of Positions	Voltage Rating	Color	Current Rating (Amps)	Size	Contact Finish	Material Flammability Rating	Housing Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Contact Type	Size
HARTING Technology Group 09330062616	Male	Push In	6+Ground	600 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330062648	Male	Tension Clamp	6+Ground	500 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330062672	Male	Push In	6+Ground	600 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330062752	Female	Crimp												Insert without Contacts	6
HARTING Technology Group 09330062602	Male	Crimp	6+Ground	600 V	Gray	16 A	6B		UL94 V-0	Polycarbonate (PC)		125 °C	-40 °C	Insert without Contacts		Han®
HARTING Technology Group 09330062601	Male	Screw	6+Ground	600 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330162672	Male	Push In	16+Ground	500 V	Gray	16 A		Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C				16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts 6 Position Crimp
