09330062672

Active

HARTING Technology Group

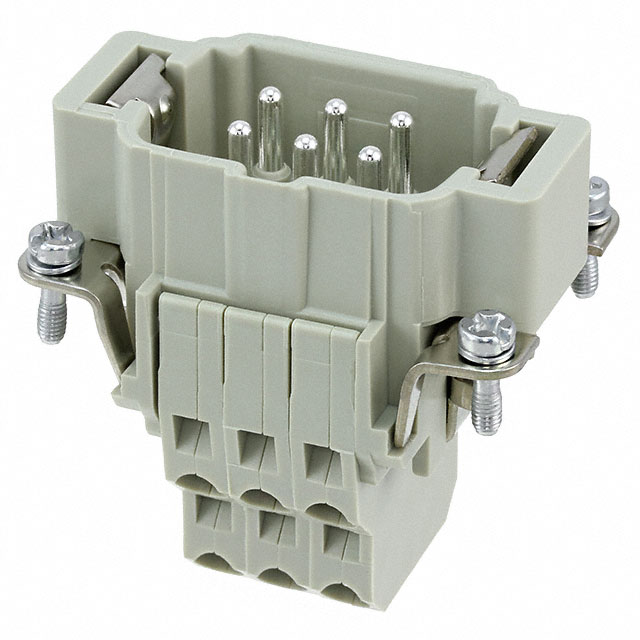

HEAVY DUTY CONNECTOR, HAN ESS SERIES, INSERT, 6 CONTACTS, 6B, PLUG, CAGE CLAMP PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN ESS SERIES, INSERT, 6 CONTACTS, 6B, PLUG, CAGE CLAMP PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09330062672

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Termination Style	Push In
Voltage Rating	600 V

Part	Gender	Termination Style	Number of Positions	Voltage Rating	Color	Current Rating (Amps)	Size	Contact Finish	Material Flammability Rating	Housing Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Contact Type	Size
HARTING Technology Group 09330062616	Male	Push In	6+Ground	600 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330062648	Male	Tension Clamp	6+Ground	500 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330062672	Male	Push In	6+Ground	600 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330062752	Female	Crimp												Insert without Contacts	6
HARTING Technology Group 09330062602	Male	Crimp	6+Ground	600 V	Gray	16 A	6B		UL94 V-0	Polycarbonate (PC)		125 °C	-40 °C	Insert without Contacts		Han®
HARTING Technology Group 09330062601	Male	Screw	6+Ground	600 V	Gray	16 A	6B	Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C
HARTING Technology Group 09330162672	Male	Push In	16+Ground	500 V	Gray	16 A		Silver	UL94 V-0	Polycarbonate (PC)	Copper Alloy	125 °C	-40 °C				16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 6+Ground Position Push In
