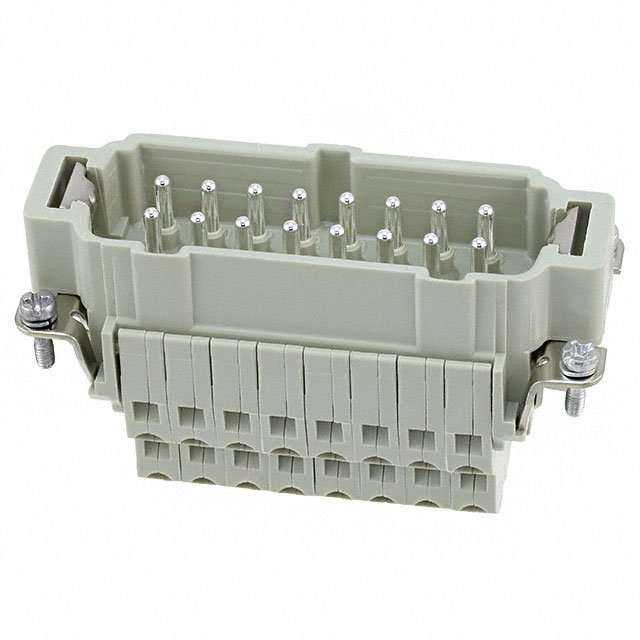

09330162672

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; MALE; 16A; 500V; HAN® ESS; PIN: 16

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; MALE; 16A; 500V; HAN® ESS; PIN: 16

Technical Specifications

Parameters and characteristics for this part

Specification	09330162672

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Push In
Voltage Rating	500 V

Part	Termination Style	Contact Finish	Housing Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Size	Material Flammability Rating	Current Rating (Amps)	Color	Gender	Number of Positions	Connector Type	Contact Type
HARTING Technology Group 09330162611	Screw	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	32 B	UL94 V-0	16 A	Gray	Male	16+Ground
HARTING Technology Group 09330162726	Push In	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Female	16+Ground
HARTING Technology Group 09330162616	Push In	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Male	16+Ground
HARTING Technology Group 09330162626	Push In	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Male	16+Ground
HARTING Technology Group 09330162612	Crimp		Polycarbonate (PC)	600 V	125 °C	-40 °C		32 B	UL94 V-0	16 A	Gray	Male	16+Ground	Insert without Contacts	Han®
HARTING Technology Group 09330162728	Push In											Female	16
HARTING Technology Group 09330162712	Crimp		Polycarbonate (PC)	600 V	125 °C	-40 °C		32 B	UL94 V-0	16 A	Gray	Female	16+Ground	Insert without Contacts	Han®
HARTING Technology Group 09330162788	Tension Clamp	Silver	Polycarbonate (PC)	500 V	125 °C	-40 °C	Copper Alloy	32 B	UL94 V-0	16 A	Gray	Female
HARTING Technology Group 09330162791	Screw		Polycarbonate (PC)	250 VDC	125 °C	-40 °C		16 B	UL94 V-0	16 A	Gray	Female	16
HARTING Technology Group 09330162725	Tension Clamp	Silver	Polycarbonate (PC)	500 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Female	12+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 16+Ground Position Push In
