0801702
ActivePhoenix Contact

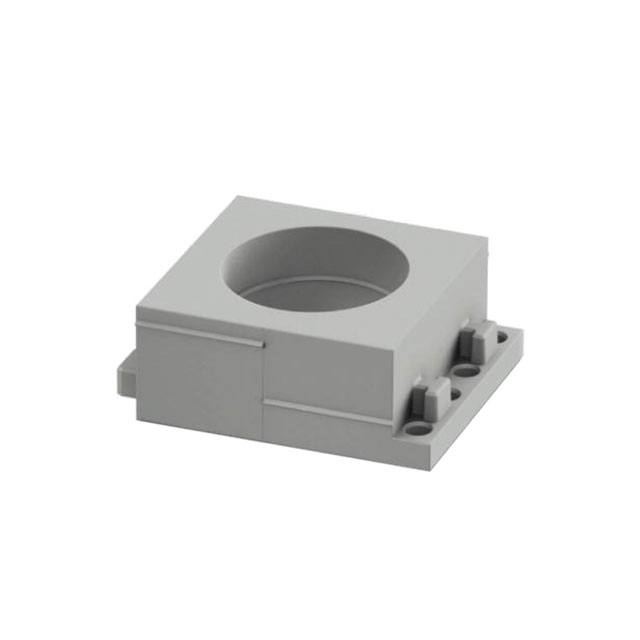

FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0801702
ActivePhoenix Contact
FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0801702 |
|---|---|
| Bushing, Grommet Type | Frame Grommet |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 29 mm |
| Diameter - Inside [Max] [diameter] | 1.142 " |
| Diameter - Inside [Min] [diameter] | 28 mm |
| Diameter - Inside [Min] [diameter] | 1.102 " |
| Features | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch |
| For Use With/Related Products | Wires, Cable |
| Material | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS |
| Material Flammability Rating | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.39 | |
Description
General part information
CES-LTPG Series
Frame Grommet 1.102" ~ 1.142" (28.00mm ~ 29.00mm) Gray
