0801693
ActivePhoenix Contact

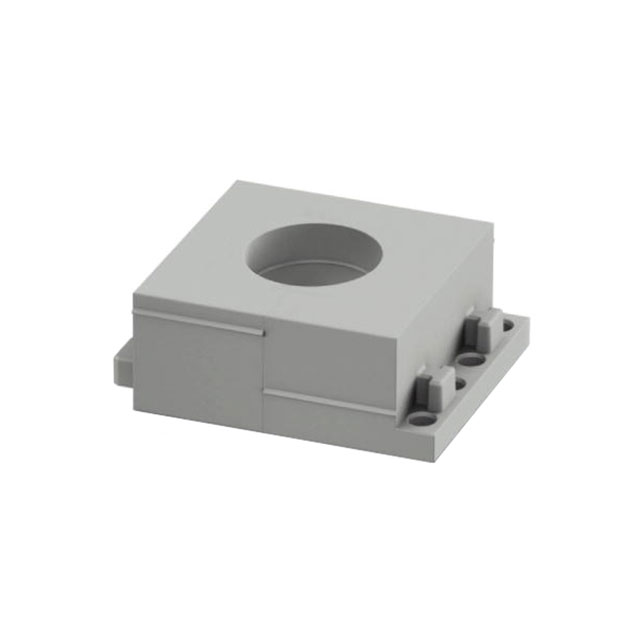

FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Search across all available documentation for this part.
0801693
ActivePhoenix Contact
FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0801693 |
|---|---|
| Bushing, Grommet Type | Frame Grommet |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 21 mm |
| Diameter - Inside [Max] [diameter] | 0.827 " |
| Diameter - Inside [Min] [diameter] | 20 mm |
| Diameter - Inside [Min] [diameter] | 0.787 " |
| Features | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch |
| For Use With/Related Products | Wires, Cable |
| Material | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS |
| Material Flammability Rating | UL94 V-0 |
CES-LTPG Series
| Part | Features | Color | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | For Use With/Related Products | Bushing, Grommet Type | Material | Material Flammability Rating | Diameter - Inside | Diameter - Inside [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 29 mm | 28 mm | 1.142 " | 1.102 " | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 21 mm | 20 mm | 0.827 " | 0.787 " | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 1.26 in | 1.22 in | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | 31 mm 32 mm | |||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 26 mm | 25 mm | 1.024 in | 0.984 " | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 28 mm | 27 mm | 1.102 in | 1.063 in | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 17 mm | 0.709 in | 0.669 in | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | 18 mm | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 25 mm | 24 mm | 0.984 " | 0.945 " | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 15 mm | 14 mm | 0.591 in | 0.551 in | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 23 mm | 0.945 in | 0.906 in | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 | 24 mm | ||
Phoenix Contact | Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant | Gray | 30 mm | 29 mm | 1.181 " | 1.142 " | Cable Wires | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.39 | |
Description
General part information
CES-LTPG Series
Frame Grommet 0.787" ~ 0.827" (20.00mm ~ 21.00mm) Gray
