0801697

Active

Phoenix Contact

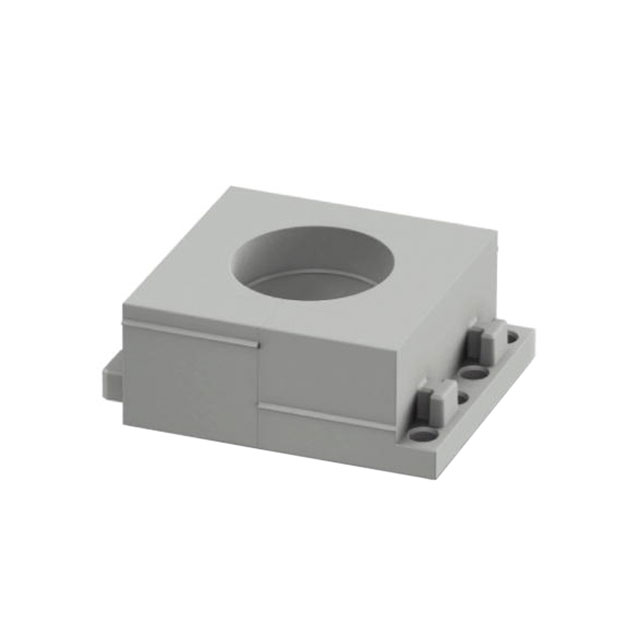

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0801697

Active

Phoenix Contact

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0801697

Bushing, Grommet Type	Frame Grommet
Color	Gray
Diameter - Inside [Max] [diameter]	24 mm
Diameter - Inside [Max] [diameter]	0.945 in
Diameter - Inside [Min] [diameter]	0.906 in
Diameter - Inside [Min] [diameter]	23 mm
Features	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch
For Use With/Related Products	Wires, Cable
Material	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Material Flammability Rating	UL94 V-0

CES-LTPG Series

Part	Features	Color	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	For Use With/Related Products	Bushing, Grommet Type	Material	Material Flammability Rating	Diameter - Inside	Diameter - Inside [Max] [diameter]
Phoenix Contact 0801702	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray	29 mm	28 mm	1.142 "	1.102 "	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0
Phoenix Contact 0801693	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray	21 mm	20 mm	0.827 "	0.787 "	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0
Phoenix Contact 0801706	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray			1.26 in	1.22 in	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0	31 mm 32 mm
Phoenix Contact 0801699	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray	26 mm	25 mm	1.024 in	0.984 "	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0
Phoenix Contact 0801701	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray	28 mm	27 mm	1.102 in	1.063 in	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0
Phoenix Contact 0801690	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray		17 mm	0.709 in	0.669 in	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0		18 mm
Phoenix Contact 0801698	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray	25 mm	24 mm	0.984 "	0.945 "	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0
Phoenix Contact 0801687	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray	15 mm	14 mm	0.591 in	0.551 in	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0
Phoenix Contact 0801697	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray		23 mm	0.945 in	0.906 in	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0		24 mm
Phoenix Contact 0801703	Flame Retardant IP54 - Dust Protected Locking Latch Screw Locking Water Resistant	Gray	30 mm	29 mm	1.181 "	1.142 "	Cable Wires	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer SEBS	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.39

Description

General part information

CES-LTPG Series

Frame Grommet 0.906" ~ 0.945" (23.00mm ~ 24.00mm) Gray
