TST03PA00

Active

ITT Cannon, LLC

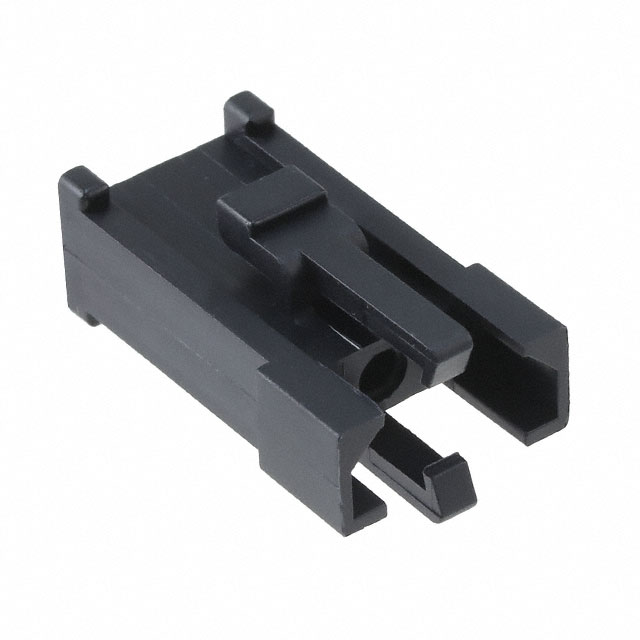

CONNECTOR HOUSING, TRIDENT TST SERIES, PLUG, 3 POSITIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

TST03PA00

Active

ITT Cannon, LLC

CONNECTOR HOUSING, TRIDENT TST SERIES, PLUG, 3 POSITIONS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST03PA00

Color	Black
Connector Type	Plug
Contact Termination	Crimp and Solder
Contact Type	Male or Female
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm

TST03 Series

Part	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Features	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Shape	Applications	Number of Rows	Connector Type	Fastening Type	Insulation Color	Number of Positions Loaded	Voltage Rating	Termination	Insulation Material	Style	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Note	Contact Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness - Mating
ITT Cannon, LLC TST03RB05T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Male Pin	Mounting Flange	Unshrouded	5.08 mm	0.2 in	UL94 V-0	13 A	Circular	Automotive Industrial	1	Receptacle	Latch Holder	Black	All	250 VDC	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	13.5 mm	0.531 in
ITT Cannon, LLC TST03RB01T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Male Pin	Mounting Flange	Unshrouded	5.08 mm	0.2 in	UL94 V-0	13 A	Circular	Automotive Industrial	1	Receptacle	Latch Holder	Black	All	250 VDC	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	13.5 mm	0.531 in
ITT Cannon, LLC TST03RE01T	0.157 in	4 mm	-40 °C	105 ░C	Through Hole Right Angle	Male Pin	Mounting Flange	Shrouded - 4 Wall	5.08 mm	0.2 in	UL94 V-0	10 A	Circular		1	Receptacle	Latch Holder	Black	All	250 VDC	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	9.8 mm	0.386 in
ITT Cannon, LLC TST03RB06Y	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in	Gold	30 Áin	0.76 Ám
ITT Cannon, LLC TST03RD01Y	0.185 in	4.7 mm	-40 °C	105 ░C	Through Hole	Male Pin	Mounting Flange	Shrouded - 4 Wall	5.08 mm	0.2 in	UL94 V-0	10 A	Circular		1	Receptacle	Latch Holder	Black	All	240 V	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	23.15 mm	0.911 in	Gold	16 Áin	0.41 Ám
ITT Cannon, LLC TST03PA00			-55 °C	105 ░C	Free Hanging (In-Line)	Male or Female									1	Plug	Latch Lock					Nylon Polyamide (PA)							Black	Contacts Not Included	Crimp and Solder	0.2 in	5.08 mm
ITT Cannon, LLC TST03PF00			-55 °C	105 ░C	Free Hanging (In-Line)	Female Socket									1	Plug	Latch Lock					Nylon Polyamide (PA)							Black	Contacts Not Included	Crimp and Solder	0.2 in	5.08 mm
ITT Cannon, LLC TST03RB02T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in
ITT Cannon, LLC TST03RB06T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in
ITT Cannon, LLC TST03RB02Z	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in	Gold								Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.53
		10	$ 2.20
		25	$ 2.11
		50	$ 2.06
		100	$ 1.97
		250	$ 1.78
		500	$ 1.64
		1000	$ 1.40
		2500	$ 1.31
Newark	Each	1	$ 2.77
		10	$ 2.35
		25	$ 2.19
		50	$ 2.09
		100	$ 2.00
		250	$ 1.87
		500	$ 1.78
		1000	$ 1.70

Description

General part information

TST03 Series

The TST03PA00 is a 3-position trident snap together Rectangular Connector Plug Housing made of black nylon. It is for use with trident T2P or T3P contacts.
