TST03RB01T

Active

ITT Cannon, LLC

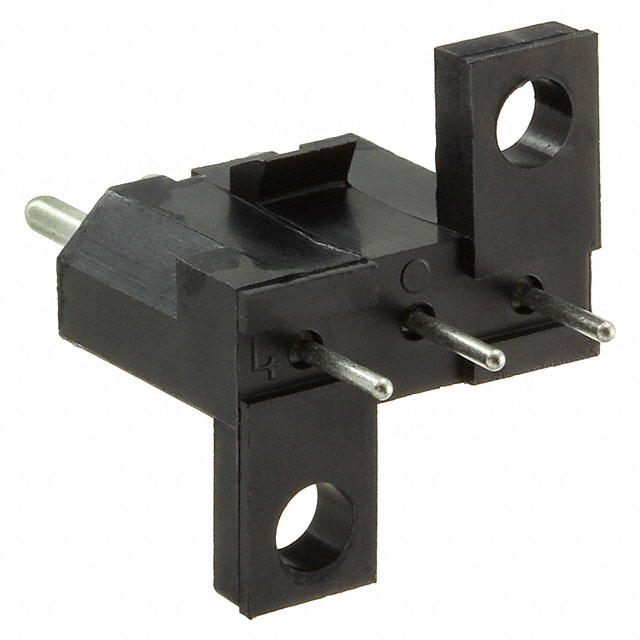

RECTANGULAR POWER CONNECTOR, TRIDENT SERIES, THROUGH HOLE, PLUG, 3, 5.08 MM, PIN ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary EN Technical Data Sheet EN +1

TST03RB01T

Active

ITT Cannon, LLC

RECTANGULAR POWER CONNECTOR, TRIDENT SERIES, THROUGH HOLE, PLUG, 3, 5.08 MM, PIN ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsOne Page Summary EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST03RB01T

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Length - Post	0.224 "
Contact Length - Post	5.7 mm
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Black
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

TST03 Series

Part	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Features	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Shape	Applications	Number of Rows	Connector Type	Fastening Type	Insulation Color	Number of Positions Loaded	Voltage Rating	Termination	Insulation Material	Style	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Note	Contact Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness - Mating
ITT Cannon, LLC TST03RB05T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Male Pin	Mounting Flange	Unshrouded	5.08 mm	0.2 in	UL94 V-0	13 A	Circular	Automotive Industrial	1	Receptacle	Latch Holder	Black	All	250 VDC	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	13.5 mm	0.531 in
ITT Cannon, LLC TST03RB01T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Male Pin	Mounting Flange	Unshrouded	5.08 mm	0.2 in	UL94 V-0	13 A	Circular	Automotive Industrial	1	Receptacle	Latch Holder	Black	All	250 VDC	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	13.5 mm	0.531 in
ITT Cannon, LLC TST03RE01T	0.157 in	4 mm	-40 °C	105 ░C	Through Hole Right Angle	Male Pin	Mounting Flange	Shrouded - 4 Wall	5.08 mm	0.2 in	UL94 V-0	10 A	Circular		1	Receptacle	Latch Holder	Black	All	250 VDC	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	9.8 mm	0.386 in
ITT Cannon, LLC TST03RB06Y	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in	Gold	30 Áin	0.76 Ám
ITT Cannon, LLC TST03RD01Y	0.185 in	4.7 mm	-40 °C	105 ░C	Through Hole	Male Pin	Mounting Flange	Shrouded - 4 Wall	5.08 mm	0.2 in	UL94 V-0	10 A	Circular		1	Receptacle	Latch Holder	Black	All	240 V	Solder	Nylon Polyamide (PA)	Board to Cable/Wire	23.15 mm	0.911 in	Gold	16 Áin	0.41 Ám
ITT Cannon, LLC TST03PA00			-55 °C	105 ░C	Free Hanging (In-Line)	Male or Female									1	Plug	Latch Lock					Nylon Polyamide (PA)							Black	Contacts Not Included	Crimp and Solder	0.2 in	5.08 mm
ITT Cannon, LLC TST03PF00			-55 °C	105 ░C	Free Hanging (In-Line)	Female Socket									1	Plug	Latch Lock					Nylon Polyamide (PA)							Black	Contacts Not Included	Crimp and Solder	0.2 in	5.08 mm
ITT Cannon, LLC TST03RB02T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in
ITT Cannon, LLC TST03RB06T	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in
ITT Cannon, LLC TST03RB02Z	0.224 "	5.7 mm	-40 °C	105 ░C	Through Hole	Female Socket	Mounting Flange		5.08 mm	0.2 in	UL94 V-0		Circular	Automotive General Purpose	1	Receptacle	Latch Holder	Black	All		Solder	Nylon Polyamide (PA)	Board to Board Cable	13.5 mm	0.531 in	Gold								Flash
