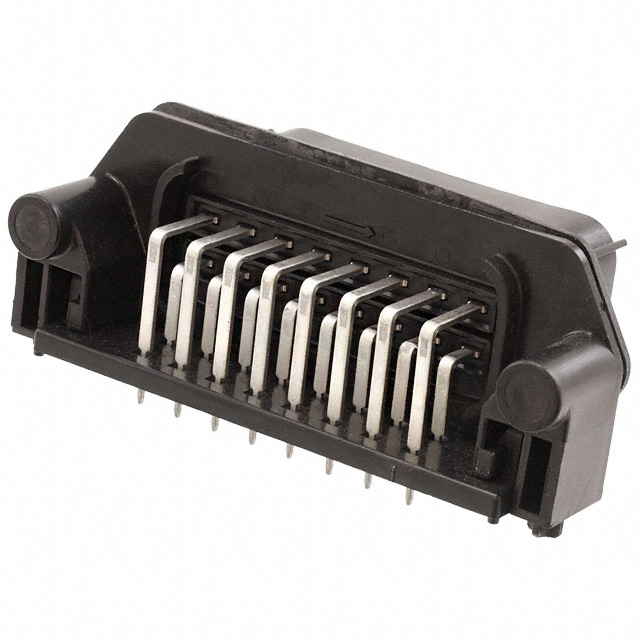

0194270049

Active

Molex

AUTOMOTIVE CONNECTORS MX150L HDR 02X08P RA SN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

0194270049

Active

Molex

AUTOMOTIVE CONNECTORS MX150L HDR 02X08P RA SN

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194270049

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Board Guide, Mounting Flange
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Insulation Height	1.247 in
Insulation Height	31.67 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	5.84 mm
Pitch - Mating	0.23 in
Row Spacing - Mating	0.236 in
Row Spacing - Mating	6 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

019427 Series

5.84mm Pitch MX150L Right-Angle PCB Header, Dual Row, without PCB Flange, Tin Plated, 4 Circuits

Part	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Applications	Mounting Type	Features	Contact Material	Insulation Material	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions	Insulation Height	Insulation Height	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Ingress Protection	Contact Finish - Post	Number of Rows	Insulation Color	Contact Length - Post	Contact Length - Post	Style	For Use With/Related Products	Accessory Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions
Molex 0194270107	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	4	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270022																		8															MX150L Series	Gasket
Molex 0194270031	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square		0.23 in	5.84 mm	Solder	10	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270018	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square		0.23 in	5.84 mm	Solder	6	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270049	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square				Solder		1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire			0.236 in	6 mm	16
Molex 0194270029																		10															MX150L Series	Gasket
Molex 0194270105	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	8	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270104	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	10	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270102	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder		1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire					16
Molex 0194270030																		12															MX150L Series	Gasket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.07
		20	$ 12.47
		80	$ 9.91
		960	$ 8.51
Sager	N/A	800	$ 8.58

Description

General part information

019427 Series

5.84mm Pitch MX150L Right-Angle PCB Header, Dual Row, without PCB Flange, Tin Plated, 4 Circuits
