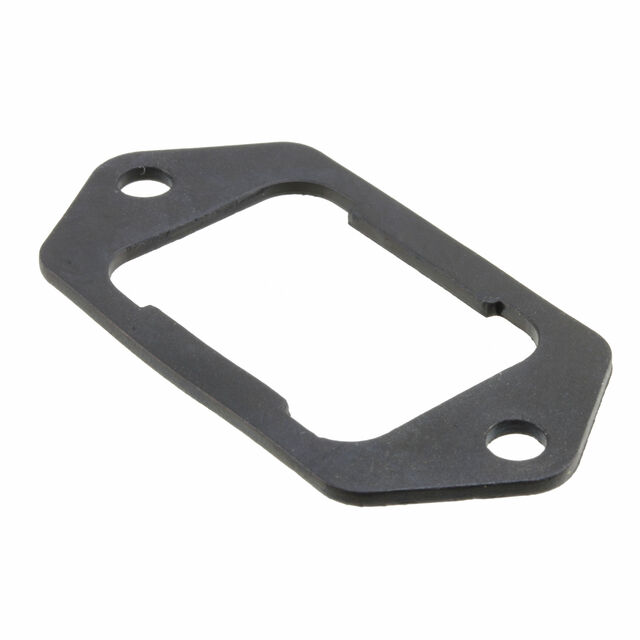

GASKET 8CIR FOR PLUG HOUSING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0194270022

Active

Molex

GASKET 8CIR FOR PLUG HOUSING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194270022

Accessory Type	Gasket
For Use With/Related Products	MX150L Series
Number of Positions	8

019427 Series

5.84mm Pitch MX150L Right-Angle PCB Header, Dual Row, without PCB Flange, Tin Plated, 4 Circuits

Part	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Applications	Mounting Type	Features	Contact Material	Insulation Material	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions	Insulation Height	Insulation Height	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Ingress Protection	Contact Finish - Post	Number of Rows	Insulation Color	Contact Length - Post	Contact Length - Post	Style	For Use With/Related Products	Accessory Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions
Molex 0194270107	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	4	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270022																		8															MX150L Series	Gasket
Molex 0194270031	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square		0.23 in	5.84 mm	Solder	10	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270018	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square		0.23 in	5.84 mm	Solder	6	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270049	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square				Solder		1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire			0.236 in	6 mm	16
Molex 0194270029																		10															MX150L Series	Gasket
Molex 0194270105	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	8	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270104	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	10	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270102	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder		1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire					16
Molex 0194270030																		12															MX150L Series	Gasket
