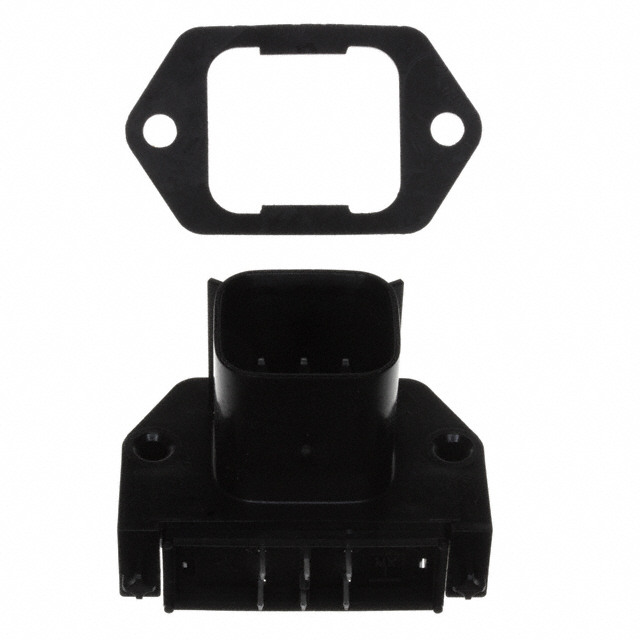

0194270018

Active

Molex

CONN HEADER R/A 6POS 5.84MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MX150L Series Assembly Instr

0194270018

Active

Molex

CONN HEADER R/A 6POS 5.84MM

Deep-Dive with AI

DocumentsDatasheet MX150L Series Assembly Instr

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194270018

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Board Guide, Mounting Flange
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Insulation Height	1.247 in
Insulation Height	31.67 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	5.84 mm
Pitch - Mating	0.23 in
Row Spacing - Mating [x]	0.23 in
Row Spacing - Mating [x]	5.84 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

019427 Series

5.84mm Pitch MX150L Right-Angle PCB Header, Dual Row, without PCB Flange, Tin Plated, 4 Circuits

Part	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Applications	Mounting Type	Features	Contact Material	Insulation Material	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions	Insulation Height	Insulation Height	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Ingress Protection	Contact Finish - Post	Number of Rows	Insulation Color	Contact Length - Post	Contact Length - Post	Style	For Use With/Related Products	Accessory Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions
Molex 0194270107	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	4	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270022																		8															MX150L Series	Gasket
Molex 0194270031	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square		0.23 in	5.84 mm	Solder	10	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270018	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square		0.23 in	5.84 mm	Solder	6	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270049	Male Blade	Shrouded - 4 Wall	100 çin	2.54 çm	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square				Solder		1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire			0.236 in	6 mm	16
Molex 0194270029																		10															MX150L Series	Gasket
Molex 0194270105	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	8	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270104	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder	10	1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire
Molex 0194270102	Male Blade	Shrouded - 4 Wall	30 Áin	0.76 Ám	Locking Ramp	All	Automotive General Purpose Industrial	Panel Mount Right Angle Through Hole	Board Guide Mounting Flange	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Square	Gold	0.23 in	5.84 mm	Solder		1.247 in	31.67 mm	Header	5.84 mm	0.23 in	2.54 µm	100 µin	IP67 - Dust Tight Waterproof	Tin	2	Black	0.13 in	3.3 mm	Board to Cable/Wire					16
Molex 0194270030																		12															MX150L Series	Gasket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.99
		10	$ 6.99
		80	$ 5.77
		440	$ 5.06
		945	$ 4.81

Description

General part information

019427 Series

5.84mm Pitch MX150L Right-Angle PCB Header, Dual Row, without PCB Flange, Tin Plated, 4 Circuits
