NJ2-PD-US-2.062-V93

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, COMFORT SERIES, 2 MM, CYLINDRICAL, SPST-NO, 20 V TO 250 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

NJ2-PD-US-2.062-V93

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, COMFORT SERIES, 2 MM, CYLINDRICAL, SPST-NO, 20 V TO 250 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NJ2-PD-US-2.062-V93

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Zinc Die-Cast
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	SCR-NC/NO, 2-Wire
Package / Case	Module
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	250 VAC, 300 VDC
Voltage - Supply [Min]	20 VDC, 20 VAC

NJ2-PD Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Material - Body	Shielding	Sensor Type	Package / Case	Sensing Distance	Sensing Distance	Termination Style	Output Type
PEPPERL+FUCHS NJ2-PD-US-2.062-V93	70 °C	-25 °C	LED	250 VAC 300 VDC	20 VDC 20 VAC	IP67	Zinc Die-Cast	Unshielded	Inductive	Module	0.079 in	2 mm	Connector	SCR-NC/NO 2-Wire
PEPPERL+FUCHS NJ2-PD-E02-2.062-V95	70 °C	-25 °C	LED	30 VDC	10 VDC	IP67	Zinc Die-Cast	Unshielded	Inductive	Module	0.079 in	2 mm	Connector	3-Wire NPN/PNP-NO
PEPPERL+FUCHS NJ2-PD-US-2.875-V93	70 °C	-25 °C	LED	250 VAC 300 VDC	20 VDC 20 VAC	IP67	Zinc Die-Cast	Unshielded	Inductive	Module	0.079 in	2 mm	Connector	SCR-NC/NO 2-Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 483.98
		5	$ 468.79
		10	$ 468.14
Newark	Each	1	$ 604.35
		5	$ 562.05

Description

General part information

NJ2-PD Series

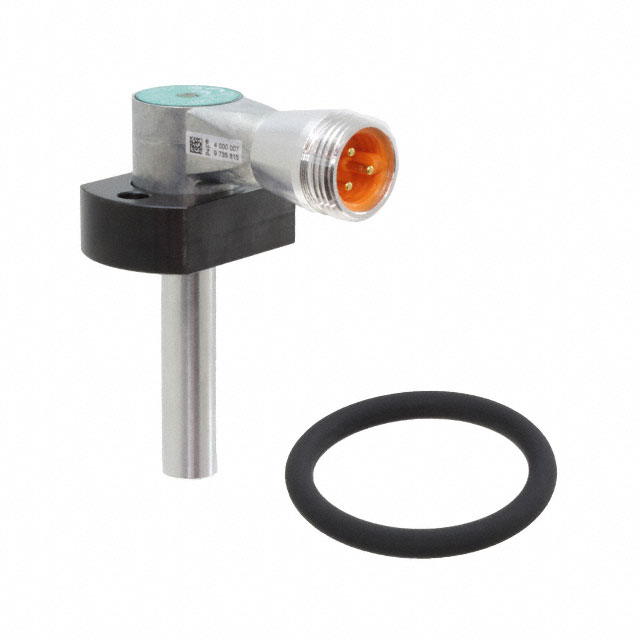

The NJ2-PD-US-2.062-V93 is a cylinder position switch Inductive Sensor with zinc housing and aluminum probe. This inductive switch features as weld immune, sensing range 2mm and NO contact switching element function.
