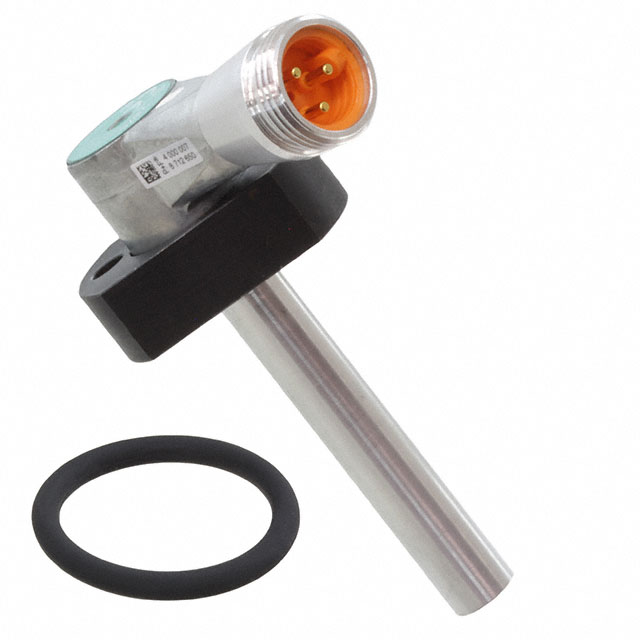

NJ2-PD-US-2.875-V93
ActivePEPPERL+FUCHS
INDUCTIVE SEN CYLINDER POSITION
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJ2-PD-US-2.875-V93 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Zinc Die-Cast |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | SCR-NC/NO, 2-Wire |
| Package / Case | Module |
| Sensing Distance | 0.079 in |
| Sensing Distance | 2 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 250 VAC, 300 VDC |
| Voltage - Supply [Min] | 20 VDC, 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 483.98 | |
| 10 | $ 468.14 | |||
Description
General part information
NJ2-PD Series
INDUCTIVE SEN CYLINDER POSITION
