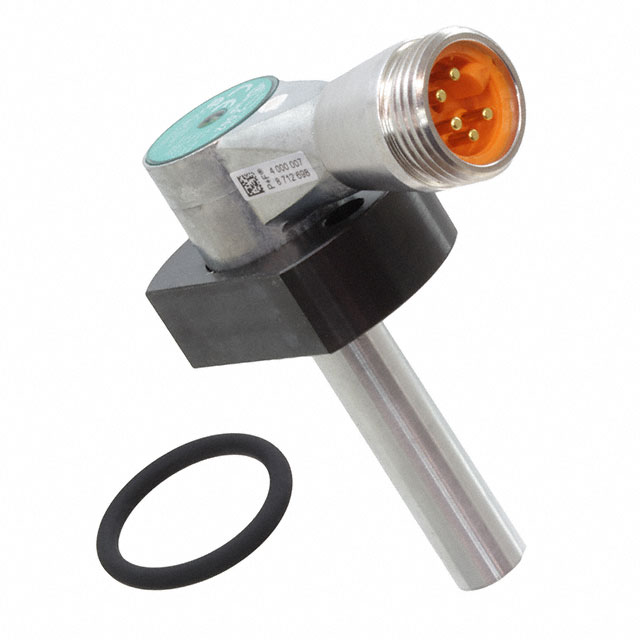

NJ2-PD-E02-2.062-V95

Active

PEPPERL+FUCHS

INDUCTIVE SEN CYLINDER POSITION

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN CYLINDER POSITION

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Material - Body	Shielding	Sensor Type	Package / Case	Sensing Distance	Sensing Distance	Termination Style	Output Type
PEPPERL+FUCHS NJ2-PD-US-2.062-V93	70 °C	-25 °C	LED	250 VAC 300 VDC	20 VDC 20 VAC	IP67	Zinc Die-Cast	Unshielded	Inductive	Module	0.079 in	2 mm	Connector	SCR-NC/NO 2-Wire
PEPPERL+FUCHS NJ2-PD-E02-2.062-V95	70 °C	-25 °C	LED	30 VDC	10 VDC	IP67	Zinc Die-Cast	Unshielded	Inductive	Module	0.079 in	2 mm	Connector	3-Wire NPN/PNP-NO
PEPPERL+FUCHS NJ2-PD-US-2.875-V93	70 °C	-25 °C	LED	250 VAC 300 VDC	20 VDC 20 VAC	IP67	Zinc Die-Cast	Unshielded	Inductive	Module	0.079 in	2 mm	Connector	SCR-NC/NO 2-Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN CYLINDER POSITION
