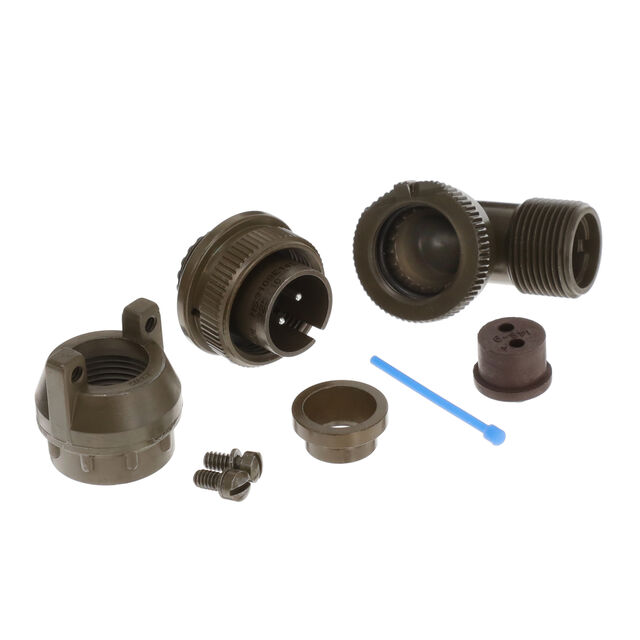

MS3108E14S-9P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3108E14S-9P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E14S-9P

Applications	Military, Marine
Cable Opening [diameter]	10.31 mm
Cable Opening [diameter]	0.406 in
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-9
Shielding	Unshielded

MS3108E14 Series

Part	Connector Type	Contact Finish - Mating	Contact Material	Shell Material	Shell Size - Insert	Primary Material	Insert Material	Shielding	Ingress Protection	Mounting Type	Shell Finish	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Qualification	Features	Color	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Grade	Number of Positions	Voltage Rating
Amphenol Industrial Operations MS3108E14S-5S	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	14S-5	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-5015	Cable Clamp Coupling Nut	Olive Drab
Amphenol Industrial Operations MS3108E14S-9P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-9	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military	2
Amphenol Industrial Operations MS3108E14S-7S	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	14S-7	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military
Amphenol Industrial Operations MS3108E14S-5P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-5	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military		200 VAC 250 VDC
Amphenol Industrial Operations MS3108E14S-7P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-7	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military
Amphenol Industrial Operations MS3108E14S-2P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-2	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military	4	200 VAC 250 VDC
Amphenol Industrial Operations MS3108E14S-12S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 45.95
		10	$ 40.23
		25	$ 38.50
		50	$ 37.25
		100	$ 36.01
		250	$ 34.03
	Bulk	1	$ 84.01
		10	$ 72.81
		25	$ 64.24
		50	$ 57.48
		100	$ 50.41

Description

General part information

MS3108E14 Series

2 Position Circular Connector Plug, Male Pins Solder Cup
