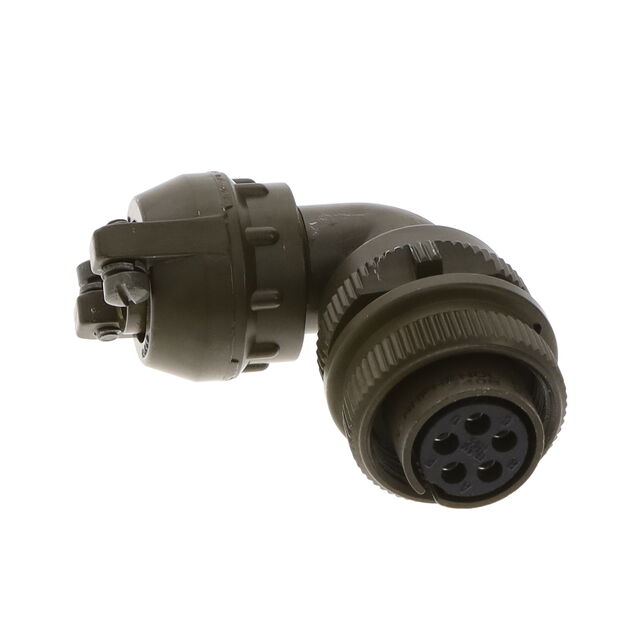

MS3108E14S-5S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3108E14S-5S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E14S-5S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-5
Shielding	Unshielded

MS3108E14 Series

Part	Connector Type	Contact Finish - Mating	Contact Material	Shell Material	Shell Size - Insert	Primary Material	Insert Material	Shielding	Ingress Protection	Mounting Type	Shell Finish	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Qualification	Features	Color	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Grade	Number of Positions	Voltage Rating
Amphenol Industrial Operations MS3108E14S-5S	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	14S-5	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-5015	Cable Clamp Coupling Nut	Olive Drab
Amphenol Industrial Operations MS3108E14S-9P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-9	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military	2
Amphenol Industrial Operations MS3108E14S-7S	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	14S-7	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military
Amphenol Industrial Operations MS3108E14S-5P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-5	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military		200 VAC 250 VDC
Amphenol Industrial Operations MS3108E14S-7P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-7	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military
Amphenol Industrial Operations MS3108E14S-2P	Male Pins Plug	Silver	Copper Alloy	Aluminum Alloy	14S-2	Metal	Neoprene	Unshielded	Environment Resistant	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	-55 °C	125 °C	Marine Military	MIL-DTL-5015	Cable Clamp Coupling Nut	Olive Drab	10.31 mm	0.406 in	13 A	Military	4	200 VAC 250 VDC
Amphenol Industrial Operations MS3108E14S-12S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.69
		10	$ 47.05
		25	$ 42.73
		50	$ 39.82
		100	$ 37.18
		250	$ 34.07

Description

General part information

MS3108E14 Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
