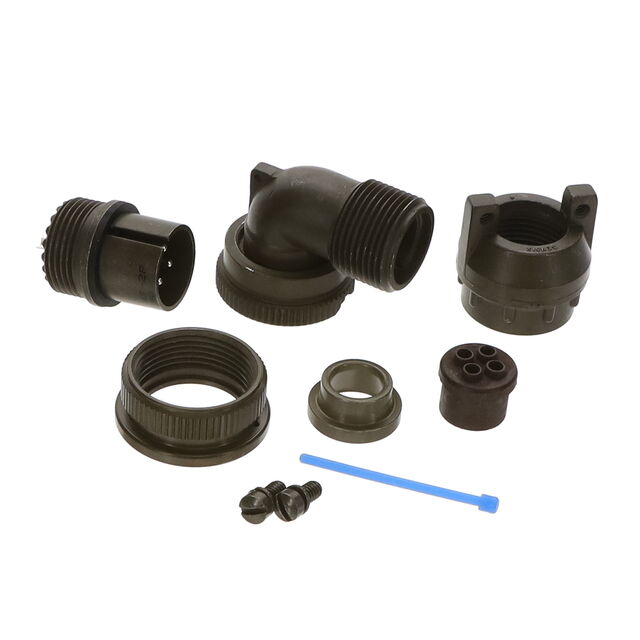

MS3108E14S-2P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E14S-2P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108E14S-2P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [diameter] | 10.31 mm |
| Cable Opening [diameter] | 0.406 in |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-2 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC, 200 VAC |
MS3108E14 Series
| Part | Connector Type | Contact Finish - Mating | Contact Material | Shell Material | Shell Size - Insert | Primary Material | Insert Material | Shielding | Ingress Protection | Mounting Type | Shell Finish | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Qualification | Features | Color | Cable Opening [diameter] | Cable Opening [diameter] | Current Rating (Amps) | Grade | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Female Sockets Plug | Silver | Copper Alloy | Aluminum Alloy | 14S-5 | Metal | Neoprene | Unshielded | Environment Resistant | Free Hanging (In-Line) Right Angle | Olive Drab Chromate over Cadmium | N | -55 °C | 125 °C | Marine Military | MIL-5015 | Cable Clamp Coupling Nut | Olive Drab | ||||||
Amphenol Industrial Operations | Male Pins Plug | Silver | Copper Alloy | Aluminum Alloy | 14S-9 | Metal | Neoprene | Unshielded | Environment Resistant | Free Hanging (In-Line) Right Angle | Olive Drab Chromate over Cadmium | N | -55 °C | 125 °C | Marine Military | MIL-DTL-5015 | Cable Clamp Coupling Nut | Olive Drab | 10.31 mm | 0.406 in | 13 A | Military | 2 | |
Amphenol Industrial Operations | Female Sockets Plug | Silver | Copper Alloy | Aluminum Alloy | 14S-7 | Metal | Neoprene | Unshielded | Environment Resistant | Free Hanging (In-Line) Right Angle | Olive Drab Chromate over Cadmium | N | -55 °C | 125 °C | Marine Military | MIL-DTL-5015 | Cable Clamp Coupling Nut | Olive Drab | 10.31 mm | 0.406 in | 13 A | Military | ||
Amphenol Industrial Operations | Male Pins Plug | Silver | Copper Alloy | Aluminum Alloy | 14S-5 | Metal | Neoprene | Unshielded | Environment Resistant | Free Hanging (In-Line) Right Angle | Olive Drab Chromate over Cadmium | N | -55 °C | 125 °C | Marine Military | MIL-DTL-5015 | Cable Clamp Coupling Nut | Olive Drab | 10.31 mm | 0.406 in | 13 A | Military | 200 VAC 250 VDC | |
Amphenol Industrial Operations | Male Pins Plug | Silver | Copper Alloy | Aluminum Alloy | 14S-7 | Metal | Neoprene | Unshielded | Environment Resistant | Free Hanging (In-Line) Right Angle | Olive Drab Chromate over Cadmium | N | -55 °C | 125 °C | Marine Military | MIL-DTL-5015 | Cable Clamp Coupling Nut | Olive Drab | 10.31 mm | 0.406 in | 13 A | Military | ||
Amphenol Industrial Operations | Male Pins Plug | Silver | Copper Alloy | Aluminum Alloy | 14S-2 | Metal | Neoprene | Unshielded | Environment Resistant | Free Hanging (In-Line) Right Angle | Olive Drab Chromate over Cadmium | N | -55 °C | 125 °C | Marine Military | MIL-DTL-5015 | Cable Clamp Coupling Nut | Olive Drab | 10.31 mm | 0.406 in | 13 A | Military | 4 | 200 VAC 250 VDC |
Amphenol Industrial Operations |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 43.58 | |
| 10 | $ 39.99 | |||
| 25 | $ 38.45 | |||
| 50 | $ 37.17 | |||
| 100 | $ 35.12 | |||
| 250 | $ 34.09 | |||
Description
General part information
MS3108E14 Series
4 Position Circular Connector Plug, Male Pins Solder Cup
