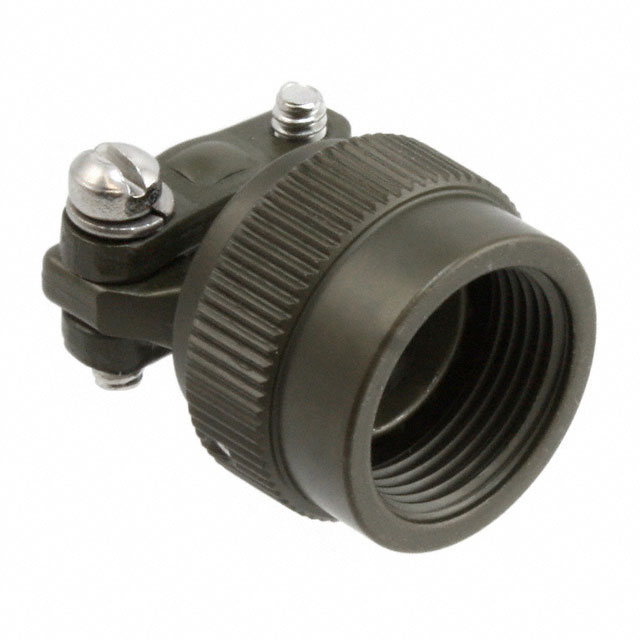

M85049/52S10W
ActiveAmphenol Interconnect India
CONN CAB CLAMP SZ10 OLIV 5/8-24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPlating
M85049/52S10W
ActiveAmphenol Interconnect India
CONN CAB CLAMP SZ10 OLIV 5/8-24
Deep-Dive with AI
DocumentsPlating
Technical Specifications
Parameters and characteristics for this part
| Specification | M85049/52S10W |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [custom] | 0.29 in |
| Cable Opening [Max] [custom] | 7.37 mm |
| Cable Opening [Min] [custom] | 0.19 in |
| Cable Opening [Min] [custom] | 4.83 mm |
| Color | Olive |
| Diameter - Outside [diameter] | 25.65 mm |
| Diameter - Outside [diameter] | 1.01 in |
| Features | Clamp Screws, Self-Locking |
| For Use With/Related Products | MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400 |
| Material | Aluminum Alloy |
| Plating | Cadmium Nickel |
| Shell Size - Insert | 10 |
| Thread Size | 5/8-24 UNEF |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.33 | |
| 10 | $ 17.80 | |||
| 25 | $ 17.03 | |||
| 50 | $ 16.48 | |||
| 100 | $ 15.93 | |||
| 250 | $ 15.05 | |||
| 500 | $ 14.62 | |||
Description
General part information
M85049/52 Series
Olive Connector Cable Clamp 5/8-24 UNEF 10
