M85049/52-1-14W

Active

Amphenol Interconnect India

CONN CAB CLAMP SZ14 OLIV 7/8-20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating

M85049/52-1-14W

Active

Amphenol Interconnect India

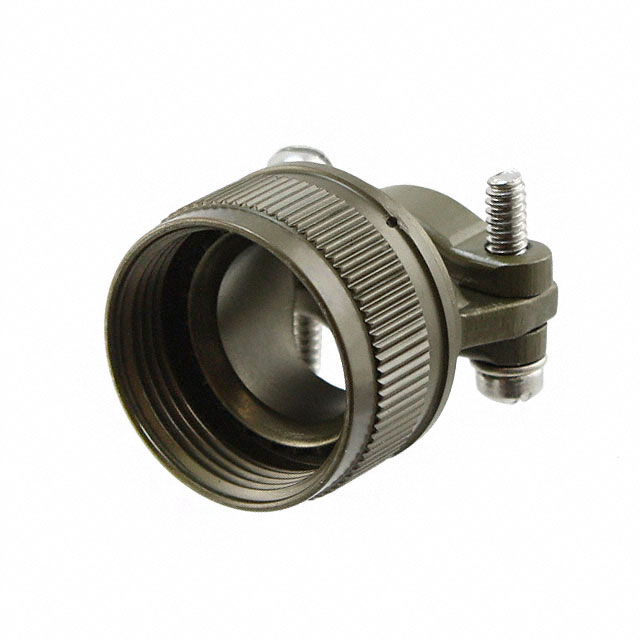

CONN CAB CLAMP SZ14 OLIV 7/8-20

Deep-Dive with AI

DocumentsPlating

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/52-1-14W

Cable Exit	180 °
Cable Opening [Max] [custom]	12.19 mm
Cable Opening [Max] [custom]	0.48 in
Cable Opening [Min] [custom]	8.89 mm
Cable Opening [Min] [custom]	0.35 in
Color	Olive
Diameter - Outside [diameter]	0.98 in
Diameter - Outside [diameter]	24.9 mm
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400
Material	Aluminum Alloy
Plating	Cadmium Nickel
Shell Size - Insert	14
Thread Size	7/8-20 UNEF
Type	Cable Clamp

M85049/52 Series

Part	Cable Exit	Color	Plating	Features	For Use With/Related Products	Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Thread Size	Shell Size - Insert	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Shielding	Shell Size - Insert	Cable Opening [custom]
Amphenol Interconnect India M85049/52S12W	180 °	Olive	Cadmium Nickel	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp	10.67 mm	7.37 mm	0.42 in	0.29 in	3/4-20 UNEF	12	1.14 "	28.96 mm	Aluminum Alloy
Amphenol Interconnect India M85049/52-1-14N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp		8.89 mm	0.48 in	0.35 in	7/8-20 UNEF	14	0.98 in	24.9 mm	Aluminum Alloy	12.19 mm
Amphenol Interconnect India M85049/52-1-8N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp					1/2-20 UNF	8	0.62 "	15.75 mm	Aluminum Alloy		5.18 mm	0.125 in	0.204 in	3.18 mm
Amphenol Interconnect India M85049/52-1-22N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp					1 5/16-18 UNEF	22	1.47 "	37.34 mm	Aluminum Alloy						16.26 mm 24.38 mm	0.64 in 0.96 in
Amphenol Interconnect India M85049/52-1-8W	180 °	Olive	Cadmium Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp					1/2-20 UNF	8	0.62 "	15.75 mm	Aluminum Alloy		5.18 mm	0.125 in	0.204 in	3.18 mm
Amphenol Interconnect India M85049/52-1-14W	180 °	Olive	Cadmium Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp		8.89 mm	0.48 in	0.35 in	7/8-20 UNEF	14	0.98 in	24.9 mm	Aluminum Alloy	12.19 mm
Amphenol Interconnect India M85049/52S10W	180 °	Olive	Cadmium Nickel	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp	7.37 mm	4.83 mm	0.29 in	0.19 in	5/8-24 UNEF	10	1.01 in	25.65 mm	Aluminum Alloy
Amphenol Interconnect India M85049/52-1-24N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp						24	1.593 "	40.46 mm	Aluminum Alloy		27.46 mm	0.706 in	1.081 in	17.93 mm			Unshielded
Amphenol Interconnect India M85049/52S14W	180 °	Olive Drab	Cadmium	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp		8.92 mm	0.476 in	0.351 in			1.26 in	32 mm	Aluminum Alloy	12.09 mm							Unshielded	12 14
Amphenol Interconnect India M85049/52S24N	180 °	Silver	Electroless Nickel	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp						24	1.885 "	47.88 mm	Aluminum Alloy						18.03 mm	0.71 in 1.08 in	Unshielded		27.43 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.02
		10	$ 14.20
		25	$ 13.65
		50	$ 13.11
		100	$ 12.38
		250	$ 11.29
		500	$ 10.56
		1000	$ 9.69

Description

General part information

M85049/52 Series

Olive Connector Cable Clamp 7/8-20 UNEF 14
