M85049/52-1-14N

Active

Amphenol Interconnect India

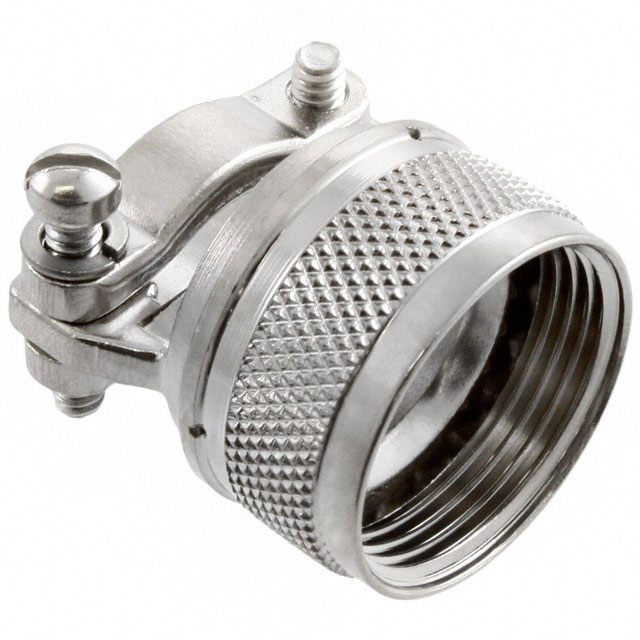

CONN CAB CLAMP SZ14 SIL 7/8-20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating

M85049/52-1-14N

Active

Amphenol Interconnect India

CONN CAB CLAMP SZ14 SIL 7/8-20

Deep-Dive with AI

DocumentsPlating

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/52-1-14N

Cable Exit	180 °
Cable Opening [Max] [custom]	12.19 mm
Cable Opening [Max] [custom]	0.48 in
Cable Opening [Min] [custom]	8.89 mm
Cable Opening [Min] [custom]	0.35 in
Color	Silver
Diameter - Outside [diameter]	0.98 in
Diameter - Outside [diameter]	24.9 mm
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	14
Thread Size	7/8-20 UNEF
Type	Cable Clamp

M85049/52 Series

Part	Cable Exit	Color	Plating	Features	For Use With/Related Products	Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Thread Size	Shell Size - Insert	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Shielding	Shell Size - Insert	Cable Opening [custom]
Amphenol Interconnect India M85049/52S12W	180 °	Olive	Cadmium Nickel	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp	10.67 mm	7.37 mm	0.42 in	0.29 in	3/4-20 UNEF	12	1.14 "	28.96 mm	Aluminum Alloy
Amphenol Interconnect India M85049/52-1-14N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp		8.89 mm	0.48 in	0.35 in	7/8-20 UNEF	14	0.98 in	24.9 mm	Aluminum Alloy	12.19 mm
Amphenol Interconnect India M85049/52-1-8N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp					1/2-20 UNF	8	0.62 "	15.75 mm	Aluminum Alloy		5.18 mm	0.125 in	0.204 in	3.18 mm
Amphenol Interconnect India M85049/52-1-22N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp					1 5/16-18 UNEF	22	1.47 "	37.34 mm	Aluminum Alloy						16.26 mm 24.38 mm	0.64 in 0.96 in
Amphenol Interconnect India M85049/52-1-8W	180 °	Olive	Cadmium Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp					1/2-20 UNF	8	0.62 "	15.75 mm	Aluminum Alloy		5.18 mm	0.125 in	0.204 in	3.18 mm
Amphenol Interconnect India M85049/52-1-14W	180 °	Olive	Cadmium Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp		8.89 mm	0.48 in	0.35 in	7/8-20 UNEF	14	0.98 in	24.9 mm	Aluminum Alloy	12.19 mm
Amphenol Interconnect India M85049/52S10W	180 °	Olive	Cadmium Nickel	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III	Cable Clamp	7.37 mm	4.83 mm	0.29 in	0.19 in	5/8-24 UNEF	10	1.01 in	25.65 mm	Aluminum Alloy
Amphenol Interconnect India M85049/52-1-24N	180 °	Silver	Electroless Nickel	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp						24	1.593 "	40.46 mm	Aluminum Alloy		27.46 mm	0.706 in	1.081 in	17.93 mm			Unshielded
Amphenol Interconnect India M85049/52S14W	180 °	Olive Drab	Cadmium	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp		8.92 mm	0.476 in	0.351 in			1.26 in	32 mm	Aluminum Alloy	12.09 mm							Unshielded	12 14
Amphenol Interconnect India M85049/52S24N	180 °	Silver	Electroless Nickel	Clamp Screws Self-Locking	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp						24	1.885 "	47.88 mm	Aluminum Alloy						18.03 mm	0.71 in 1.08 in	Unshielded		27.43 mm
