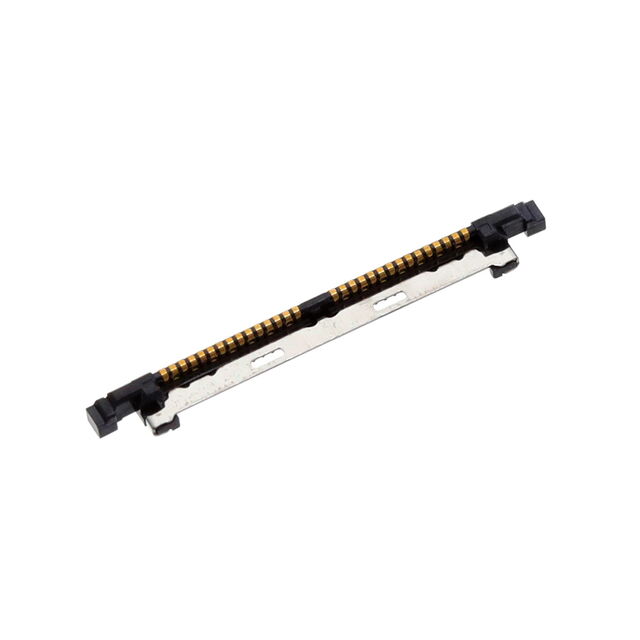

DF56-30P-0.3SD(51)
ActiveHirose Electric USA, Inc.
CONN PLUG 30POS SOLDER 42-46AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF56-30P-0.3SD(51)
ActiveHirose Electric USA, Inc.
CONN PLUG 30POS SOLDER 42-46AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF56-30P-0.3SD(51) |
|---|---|
| Cable Termination | Solder |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Type | Non-Gender Specific |
| Fastening Type | Detent Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 30 |
| Number of Rows | 1 |
| Pitch [x] | 0.012 in |
| Pitch [x] | 0.3 mm |
| Wire Gauge [Max] | 46 AWG |
| Wire Gauge [Min] | 42 AWG |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 1.01 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.67 | |||
| 2500 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.41 | ||
| 10 | $ 1.19 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.07 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.78 | |||
| 2500 | $ 0.70 | |||
| Tape & Reel (TR) | 10000 | $ 0.60 | ||
Description
General part information
DF56 Series
30 Position Rectangular Plug Connector Solder Gold 42-46 AWG
