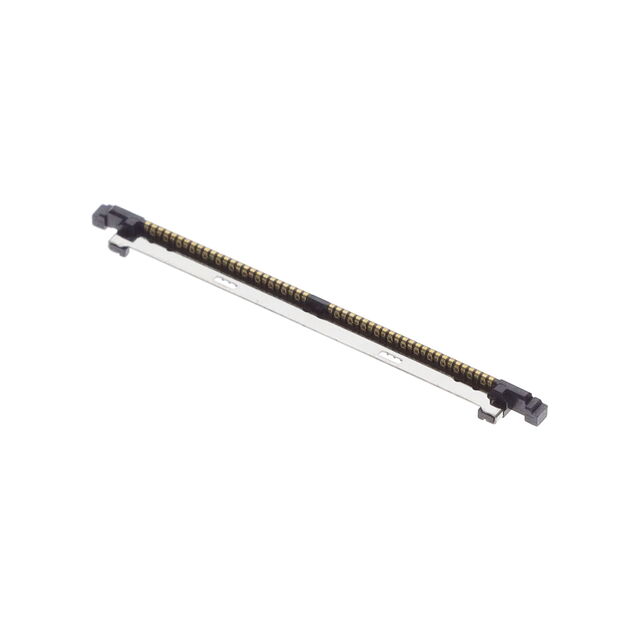

DF56-50P-0.3SD(51)
ActiveHirose Electric USA, Inc.
CONN PLUG 50POS SOLDER 42-46AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDF56-50P-0.3SD(51) Spec
DF56-50P-0.3SD(51)
ActiveHirose Electric USA, Inc.
CONN PLUG 50POS SOLDER 42-46AWG
Deep-Dive with AI
DocumentsDF56-50P-0.3SD(51) Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | DF56-50P-0.3SD(51) |
|---|---|
| Cable Termination | Solder |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Type | Non-Gender Specific |
| Fastening Type | Detent Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Pitch [x] | 0.012 in |
| Pitch [x] | 0.3 mm |
| Wire Gauge [Max] | 46 AWG |
| Wire Gauge [Min] | 42 AWG |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.96 | |
| 10 | $ 1.71 | |||
| 25 | $ 1.64 | |||
| 50 | $ 1.60 | |||
| 100 | $ 1.53 | |||
| 250 | $ 1.38 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.09 | |||
| 2500 | $ 1.02 | |||
| Digi-Reel® | 1 | $ 1.96 | ||
| 10 | $ 1.71 | |||
| 25 | $ 1.64 | |||
| 50 | $ 1.60 | |||
| 100 | $ 1.53 | |||
| 250 | $ 1.38 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.09 | |||
| 2500 | $ 1.02 | |||
| Tape & Reel (TR) | 10000 | $ 0.67 | ||
Description
General part information
DF56 Series
50 Position Rectangular Plug Connector Solder Gold 42-46 AWG
Documents
Technical documentation and resources
