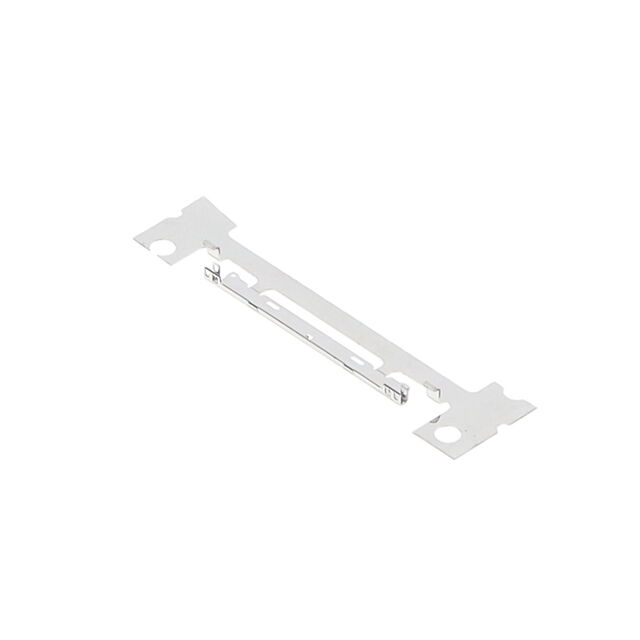

DF56-40P-SHL

Active

Hirose Electric USA, Inc.

CONN COVER FOR 40POS PLUG

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN COVER FOR 40POS PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	DF56-40P-SHL

Accessory Type	Cap (Cover)
For Use With/Related Products	DF56 Series
Number of Positions	40

Part	Color	Number of Rows	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Wire Type	Cable Termination	Contact Finish	Fastening Type	Accessory Type	For Use With/Related Products	Number of Positions Loaded	Insulation Color	Contact Finish - Post	Termination	Insulation Material	Style	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Material Flammability Rating
Hirose Electric USA, Inc. DF56-30P-0.3SD(51)	Black	1	30	Non-Gender Specific	0.012 in	0.3 mm	Plug	46 AWG	42 AWG	Free Hanging (In-Line)	Ribbon Cable	Solder	Gold	Detent Lock
Hirose Electric USA, Inc. DF56-26P-SHL			26												Cap (Cover)	DF56 Series
Hirose Electric USA, Inc. DF56-50S-0.3V(53)		1	50	Non-Gendered			Receptacle			Surface Mount				Friction Lock			All	Black	Tin	Solder	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Square	0.3 mm	0.012 "	Phosphor Bronze	85 °C	-55 °C	30 VAC	Varies by Wire Gauge	0.024 in	0.6 mm	Gold	UL94 V-0
Hirose Electric USA, Inc. DF56-40P-SHL			40												Cap (Cover)	DF56 Series
Hirose Electric USA, Inc. DF56-40P-0.3SD(51)	Black	1	40	Non-Gender Specific	0.012 in	0.3 mm	Plug	46 AWG	42 AWG	Free Hanging (In-Line)	Ribbon Cable	Solder	Gold	Detent Lock
Hirose Electric USA, Inc. DF56-50P-0.3SD(51)	Black	1	50	Non-Gender Specific	0.012 in	0.3 mm	Plug	46 AWG	42 AWG	Free Hanging (In-Line)	Ribbon Cable	Solder	Gold	Detent Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover) For DF56 Series
