SM312FVBQD

Active

BANNER ENGINEERING

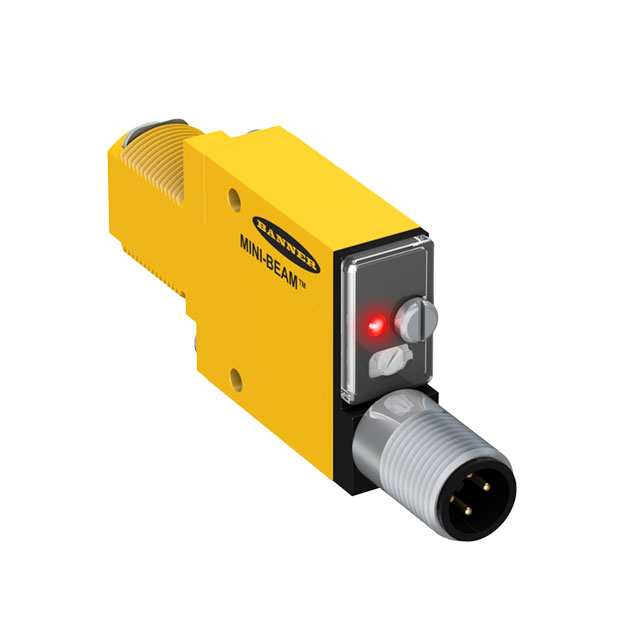

MINI-BEAM: VISIBLE BLUE 475 NM GLASS FIBER OPTIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM312FVBQD

Active

BANNER ENGINEERING

MINI-BEAM: VISIBLE BLUE 475 NM GLASS FIBER OPTIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM312FVBQD

Connection Method	Connector
Ingress Protection	6, 12, NEMA 1, 3S, 2, 4, 4X, 3, IEC IP67
Light Source	LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP
Response Time	1 ms
Sensing Method	Fiber Optic
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

SM312 Series

Part	Sensing Distance	Sensing Distance	Response Time	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Connection Method	Light Source	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length
BANNER ENGINEERING SM312WQD	130 mm	5.118 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312DQDP-68020	380 mm	14.961 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312FV			1 ms	Fiber Optic	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Cable	LED	NPN/PNP	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312FVBQD			1 ms	Fiber Optic	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	LED	NPN/PNP	-20 C	70 °C
BANNER ENGINEERING SM312CV	16 mm	0.63 in	1 ms	Convergent	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Cable	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312LVQD	5 m	196.85 in	1 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Connector	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312LVMHS	5 m	196.85 in	0.3 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Cable	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312CVQD	16 mm	0.63 in	1 ms	Convergent	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Red LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312LVQD-50939	5 m	196.85 in	1 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Connector	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312DQD	380 mm	14.961 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 227.00
Newark	Each	1	$ 232.00

Description

General part information

SM312 Series

Fiber Optic Optical Sensor NPN/PNP
